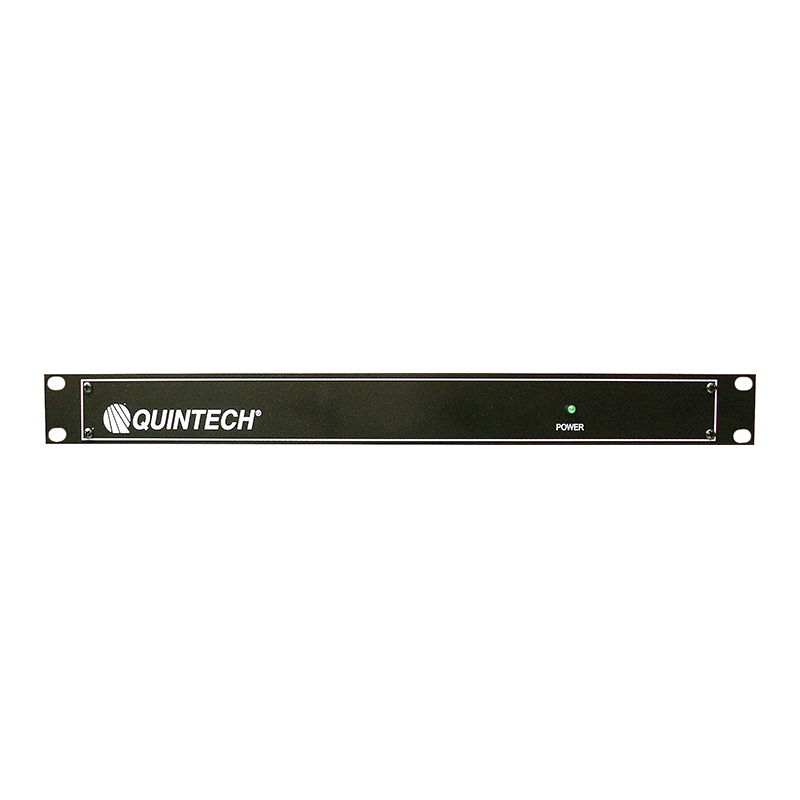

The Quintech LC161000A1FXA000 is a commercial-quality 16-way active RF combiner that combines 16 input signals into one output across the 5–1000 MHz frequency range. Its active design provides nominal zero insertion loss at 500 MHz, avoiding the high passive loss normally associated with a 16-way combiner.

Built with Quintech proprietary microstrip and SMT technology, the LC161000A1FXA000 delivers repeatable RF performance and dependable impedance matching across all inputs. It features 75-ohm Type F connectors and an internal universal AC power supply for broadband, CATV, broadcast, telecommunications and centralized RF distribution systems.

Specifications:

Product Type: 16-Way Active RF Combiner
Manufacturer: Quintech Electronics
Product Series: LC16 1000A AC
Part Number: LC161000A1FXA000
Configuration: 16 × 1
RF Inputs: 16
RF Outputs: 1
Frequency Range: 5–1000 MHz
Impedance: 75 Ohms
P1dB: +8 dBm per Input
Insertion Loss: 0 ±2 dB at 500 MHz
Frequency Response: ±2.5 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 7 dB
Noise Figure: 21 dB
RF Connectors: 75-Ohm Type F
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 7 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Weight: 5 lb.
Country of Manufacture: USA

Important: All unused RF input ports must be terminated with 75-ohm terminations.
