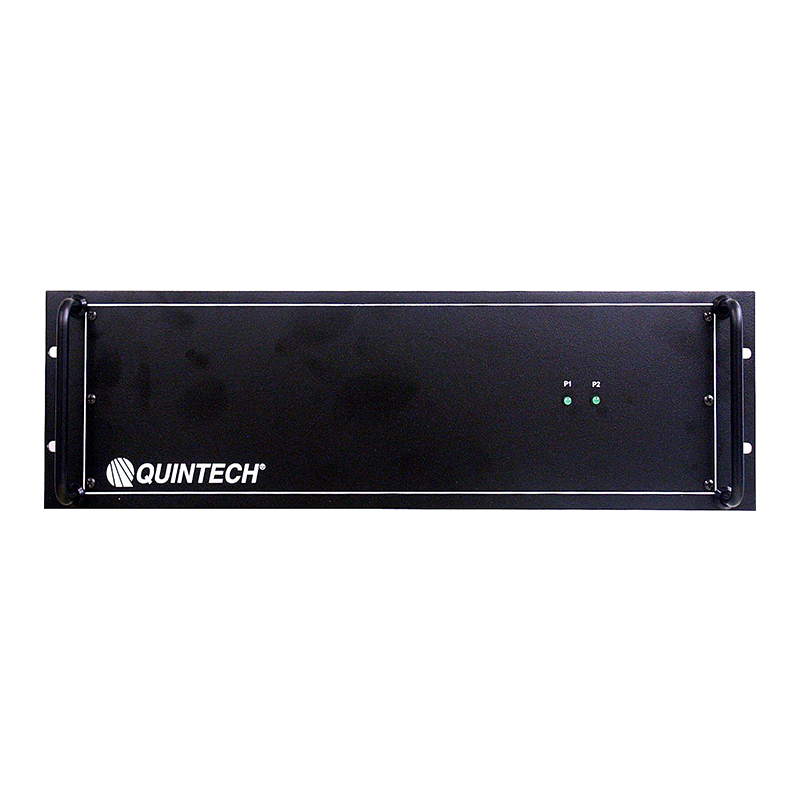

Quintech LC641000A1FRC000 5–1000 MHz 64-Way Active RF Combiner

Quintech LC641000A1FRC000 64-Way Active RF Combiner with Dual Power Redundancy, 5–1000 MHz

The Quintech LC641000A1FRC000 is a commercial-quality 64-way active RF combiner with dual power redundancy. It combines 64 input signals into one output across the 5–1000 MHz frequency range. Its active design provides nominal zero insertion loss at 500 MHz, avoiding the high passive loss normally associated with a 64-way combiner.

Built with Quintech proprietary microstrip and SMT technology, the LC641000A1FRC000 delivers repeatable RF performance and dependable impedance matching across all inputs. It features 75-ohm Type F connectors, universal AC power and redundant power architecture for increased availability in broadband, CATV, broadcast, telecommunications and centralized RF distribution systems.

Specifications:

Product Type: 64-Way Active RF Combiner
Manufacturer: Quintech Electronics
Product Series: LC64 1000A
Part Number: LC641000A1FRC000
Configuration: 64 × 1
RF Inputs: 64
RF Outputs: 1
Frequency Range: 5–1000 MHz
Impedance: 75 Ohms
P1dB: -2 dBm per Input
Insertion Loss: 0 ±2 dB at 500 MHz
Frequency Response: ±2.5 dB
Isolation: 20 dB
Input Return Loss: 17 dB
Output Return Loss: 11 dB
Noise Figure: 24 dB
RF Connectors: 75-Ohm Type F
Power Redundancy: Dual
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 25 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 3RU Rackmount
Dimensions: 5.25 in. H × 19 in. W × 20 in. D
Net Weight: 11.1 lb.
Gross Weight: 17.1 lb.

Important: All unused RF input ports must be terminated with 75-ohm terminations.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
