Quintech XTREME 80 Fan-Out L-Band RF Matrix Switch, Up to 80 Ports

Quintech XTREME 80 Fan-Out L-Band RF Matrix Switch, Up to 80 Ports

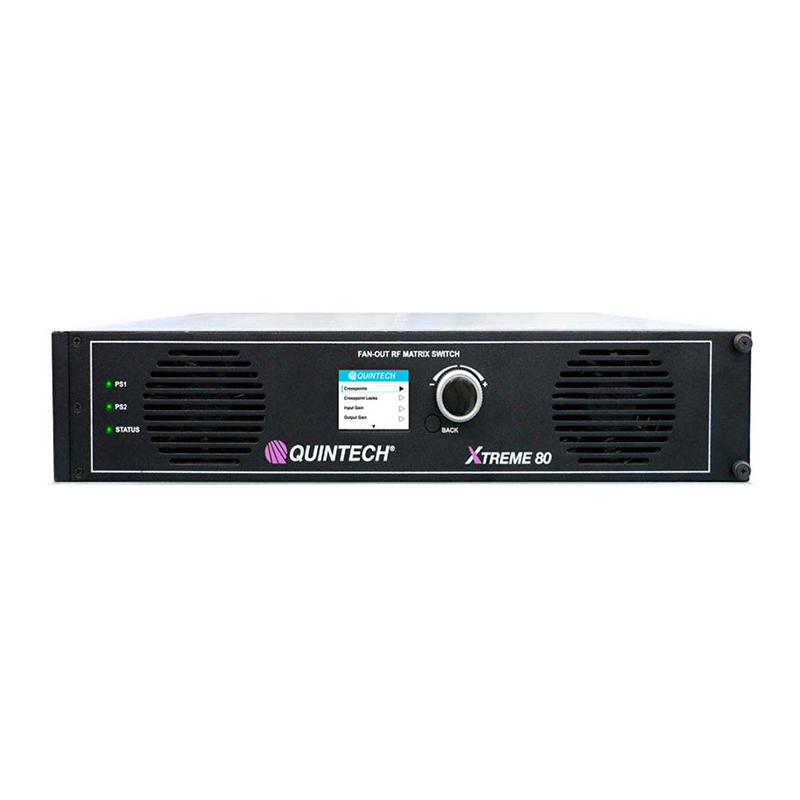

The Quintech XTREME 80 is a full fan-out, non-blocking L-band RF matrix switch supporting up to 80 combined input and output ports in a compact 2RU chassis. Its flexible matrix architecture supports symmetric and asymmetric configurations, including 32 × 32, 16 × 64 and 24 × 40.

Any input can be routed simultaneously to any or all outputs, making the XTREME 80 ideal for satellite, broadcast, teleport, monitoring and high-density RF distribution systems. It operates across both 50–200 MHz and 950–2200 MHz frequency ranges and provides adjustable gain or attenuation on every input and output.

The modular design supports optional fiber-optic receivers, individually controlled LNB power, redundant power and control cards, and hot-swappable active modules. Local front-panel control and Ethernet-based remote management provide comprehensive routing, monitoring and configuration capabilities.

Specifications:

Product Type: Fan-Out L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME
Model: XTREME 80
Switching Architecture: Full Fan-Out, Distributive and Non-Blocking
Maximum Port Capacity: 80 Combined Inputs and Outputs
Standard Configuration: 32 × 32
Asymmetric Configuration: 16 × 64
Additional Configuration: 24 × 40 and Other Custom Arrangements
Frequency Range: 50–200 MHz and 950–2200 MHz
Impedance: 50 or 75 Ohms
Input Gain Range, 32 × 32: -19.5 to +12 dB
Input Gain Range, 16 × 64: -24 to +8 dB
Output Gain Range: -15.5 to +16 dB
Input P1dB: 0 dBm
OIP3: +10 dBm
Frequency Response: ±1.5 dB
Frequency Response over Any 36 MHz: ±0.5 dB
Input-to-Input Isolation: 60 dB
Output-to-Output Isolation: 60 dB
Input-to-Output Isolation: 55 dB
Input Return Loss: 14 dB
Output Return Loss: 14 dB
Noise Figure: 13 dB at 0 dB Gain
RF Connectors: Type F, BNC, SMA or Mixed
Optical Receiver Support: Yes
Optical Wavelength Range: 900–1650 nm
Optical Return Loss: 14 dB
Optical Connectors: SC/APC or LC/APC
LNB Power: Optional, Individually Controlled per Input
LNB Voltage: 0, 13 or 18 VDC with 22 kHz Tone
LNB Current: 400 mA per Input
Total LNB Power Capacity: 180 W
Power and Control Redundancy: Yes
Hot-Swappable Active Modules: Yes, Less Than 30 Seconds
Local Control: 2.2-Inch Front-Panel Display with Rotary Joystick
Remote Control: Web Browser, SNMP, Telnet, TCP/IP and Remote Panel
Network Interface: Ethernet
Power Requirements: 100–240 VAC, 50/60 Hz, Autoranging
Power Consumption: 165 W typ.
Power Consumption with LNB Option, 32 × 32: 345 W
Power Consumption with LNB Option, 16 × 64: 255 W
Mechanical Format: 2RU Rackmount
Dimensions: 3.5 in. H × 19 in. W × 23.25 in. D

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
