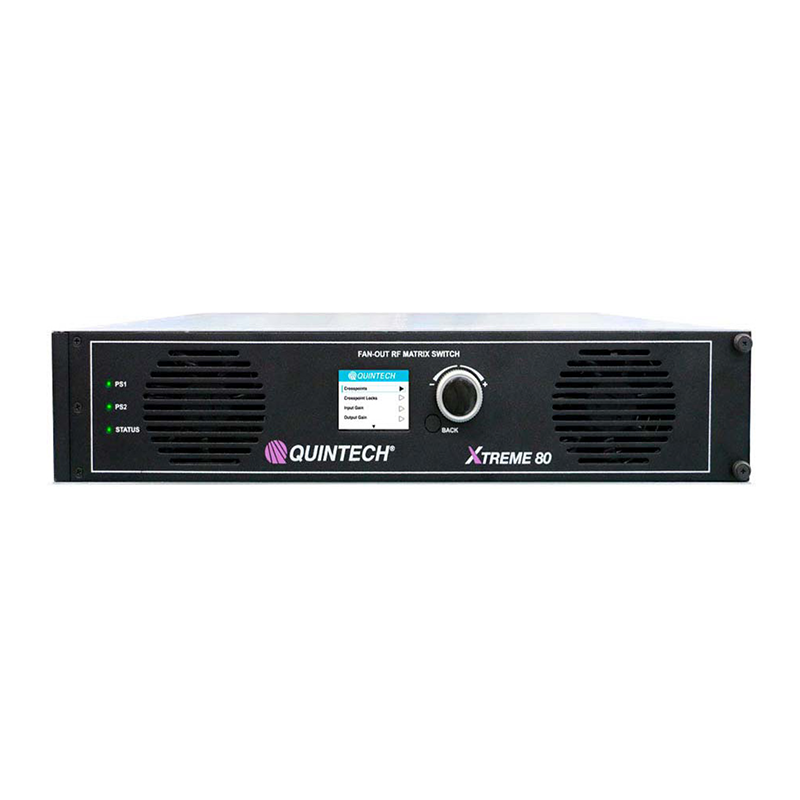

Quintech XTREME 80-C Fan-In L-Band RF Matrix Switch, Up to 80 Ports

Quintech XTREME 80-C Fan-In L-Band RF Matrix Switch, Up to 80 Ports

The Quintech XTREME 80-C is a full fan-in, non-blocking L-band RF matrix switch supporting up to 80 combined input and output ports in a compact 2RU chassis. Available in 32 × 32 and 64 × 16 configurations, it allows one or multiple RF inputs to be routed and combined at an output.

Its patented flexible matrix architecture makes the XTREME 80-C ideal for satellite, broadcast, teleport, monitoring and centralized RF distribution systems requiring high-density signal combining. Independent gain control on all inputs and outputs allows RF levels to be optimized throughout the system.

The modular design supports multiple RF connector types, optional fiber-optic input receivers, redundant power supplies and redundant control cards. RF cards, power supplies and control cards are hot-swappable for maximum system availability. Local front-panel control and Ethernet-based remote management provide comprehensive routing, monitoring and configuration capabilities.

Specifications:

Product Type: Fan-In L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME
Model: XTREME 80-C
Switching Architecture: Full Fan-In, Combining and Non-Blocking
Maximum Port Capacity: 80 Combined Inputs and Outputs
Standard Configuration: 32 × 32
Asymmetric Configuration: 64 × 16
Frequency Range: 850–2450 MHz
Impedance: 50 or 75 Ohms
Input Gain Range: -14.5 to +17 dB
Output Gain Range, 32 × 32: -19.5 to +12 dB
Input P1dB: 0 dBm
OIP3: +10 dBm
Frequency Response: ±1.5 dB
Frequency Response over Any 36 MHz: ±0.5 dB
Input-to-Input Isolation: 60 dB
Output-to-Output Isolation: 60 dB
Input-to-Output Isolation: 55 dB
Input Return Loss: 14 dB
Output Return Loss: 14 dB
Noise Figure: 13 dB at 0 dB Gain
RF Connectors: Type F, BNC, SMA, Mixed or Optical
Optical Input Receiver Support: Optional
Optical Connectors: SC/APC or LC/APC
Power Supply Redundancy: Yes
Control Card Redundancy: Yes
Hot-Swappable Components: RF Cards, Power Supplies and Control Cards
Local Control: 2.2-Inch Front-Panel LCD with Rotary Joystick
Remote Control: Web Browser, SNMP, Telnet, TCP/IP and Remote Panel
Network Interface: Ethernet
Power Requirements: 100–240 VAC, 50/60 Hz, Autoranging
Power Consumption: 160 W
Mechanical Format: 2RU Rackmount
Dimensions: 3.5 in. H × 19 in. W × 23.25 in. D

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
