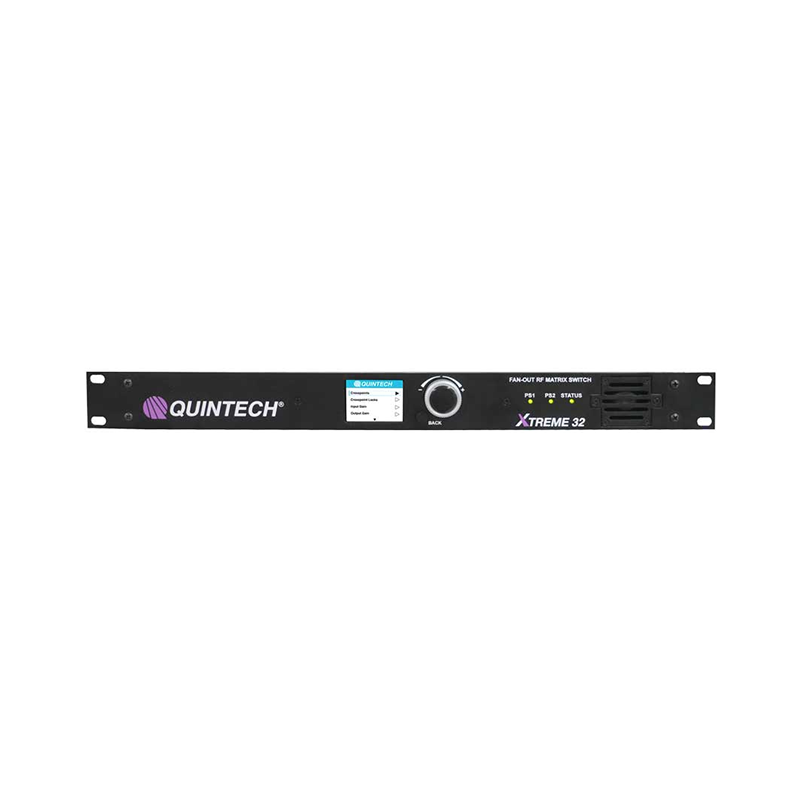

Quintech QH12200V8X8/8X8CSS1AA1000 XTREME 32 Dual 8×8 Hybrid RF Matrix Switch, 850–2500 MHz

Quintech QH12200V8X8/8X8CSS1AA1000 XTREME 32 Dual 8×8 Hybrid RF Matrix Switch, 850–2500 MHz

The Quintech QH12200V8X8/8X8CSS1AA1000 XTREME 32 is a dual 8 × 8 hybrid RF matrix switch combining a non-blocking fan-out splitting matrix and a non-blocking fan-in combining matrix in one compact 1RU chassis. Operating across 850–2500 MHz, it provides comprehensive L-band and wideband signal routing for satellite, broadcast, teleport, monitoring and RF distribution systems.

Independent input and output gain controls allow signal levels and cable losses to be balanced throughout both matrices. RF sensing and automatic gain control support input levels from -50 to 0 dBm, while hot-swappable RF modules and redundant power supplies maximize system availability.

The XTREME 32 provides local control through a front-panel LCD and rotary knob. Dual Gigabit Ethernet ports support redundant network connections, secure web management, SNMP, TCP/IP, NTP synchronization, IP whitelisting, alarms and event logging.

Specifications:

Product Type: Dual Hybrid RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32
Part Number: QH12200V8X8/8X8CSS1AA1000
Configuration: Dual 8 × 8 Matrices
Fan-Out Matrix: Non-Blocking 8 × 8 Splitting Matrix
Fan-In Matrix: Non-Blocking 8 × 8 Combining Matrix
Frequency Range: 850–2500 MHz
Impedance: 50 Ohms
RF Connectors: SMA Female
Fan-Out Frequency Response: ±3 dB Maximum
Fan-In Frequency Response: ±2.5 dB Maximum
Fan-Out Response over Any 36 MHz: ±0.7 dB
Fan-In Response over Any 36 MHz: ±0.5 dB
Input P1dB at Default Gain: 0 dBm Minimum
Input P1dB at Maximum Input Gain: -15 dBm typ.
Output P1dB: +17 dBm at +18 dB Output Gain
OIP3 at Default Gain: +10 dBm Minimum
Fan-Out Noise Figure at Default Gain: 14 dB Maximum
Fan-In Noise Figure at Default Gain: 13 dB Maximum for One Connection; 21 dB at Full Fan-In
Fan-Out Noise Figure at Maximum Input Gain: 10 dB typ.
Fan-In Noise Figure at Maximum Input Gain: 7 dB typ. for One Connection; 11 dB at Full Fan-In
Input Return Loss: 14 dB Minimum
Output Return Loss: 14 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation: 50 dB Minimum
Fan-In-to-Fan-Out Isolation: 60 dB Minimum
Fan-Out Input Gain Range: -15.5 to +16 dB
Fan-In Input Gain Range: -17.5 to +14 dB
Fan-Out Output Gain Range: -14.5 to +17 dB
Fan-In Output Gain Range: -13.5 to +18 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
AGC Tracking Range: -50 to 0 dBm
Crosspoint Command Time: 150 ms typ.
Break-to-Make Switching Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000 Ethernet Ports
Remote Control: Secure Web Server and SNMP v2c/v3
Network Security: HTTPS, Custom SSL Certificate and IP Whitelisting
Time Synchronization: Secure NTP Client
Alarms: SNMP Traps and Syslog Messages
Logging: Syslog, SQL or CSV
Power Supplies: Dual Hot-Swappable Redundant Supplies
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A
Power Consumption: 110 W typ.
Cooling: Field-Replaceable Long-Life Fan
RF Modules: Hot-Swappable Inputs and Outputs
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11.2 lb.
Gross Weight: 14 lb.
Certifications: TUV and FCC Part 15
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL

Available now at Esatcom Inc. Please contact us for pricing and lead time.
