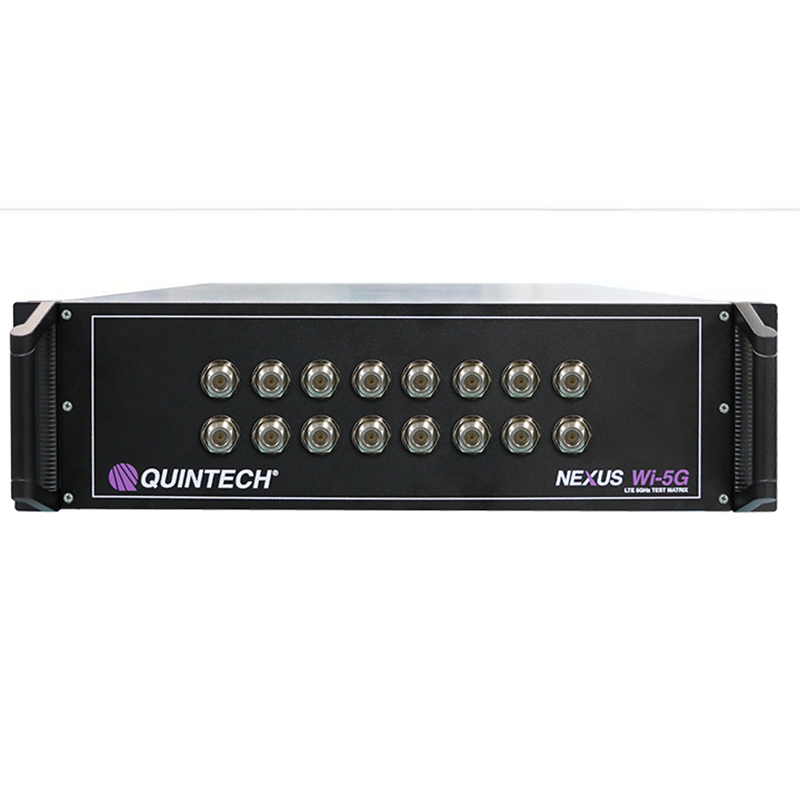

Quintech NEXUS Wi-5G 4×8/8×8 6 GHz MIMO RF Test Matrix

Quintech NEXUS Wi-5G 4×8/8×8 6 GHz MIMO RF Test Matrix

The Quintech NEXUS Wi-5G is a bidirectional RF attenuator matrix designed for automated 2×2 through 8×8 MIMO testing across the continuous 600 MHz–6 GHz frequency range. Available in 4×8 and 8×8 configurations, it supports 4G/LTE, sub-6 GHz 5G, Wi-Fi 6 and other current or emerging wireless technologies.

Its non-blocking, full fan-in/fan-out architecture can connect any input to one or every output and any output to one or every input. Integrated wideband splitters and combiners support complex MIMO test arrangements, while terminated solid-state switches isolate unused signal paths.

The matrix incorporates 64 programmable attenuators with 0–60 dB adjustment in 0.5 dB steps. Combined fixed and variable attenuation provides up to 90 dB per connection for RF fading, path-loss simulation, roaming, handover, beamforming, carrier aggregation, wireless mesh and interference testing.

Ethernet, Telnet, SNMP, TCP/IP, an embedded web server and API protocol support automated laboratory operation. Optional Q-LAAMP software adds an intuitive interface, equipment-resource management and user-configurable RF-fading applications.

Specifications:

Product Type: Bidirectional MIMO RF Test Matrix
Manufacturer: Quintech Electronics
Product Series: NEXUS
Model: NEXUS Wi-5G
Available Configurations: 4×8 and 8×8
Supported MIMO Configurations: 2×2 Through 8×8
Frequency Range: 600 MHz–6 GHz
Supported Technologies: 4G/LTE, Sub-6 GHz 5G and Wi-Fi 6
Matrix Architecture: Passive, Bidirectional and Non-Blocking
Routing Architecture: Full Fan-In/Fan-Out
Switching Technology: Solid State
Programmable Attenuators: 64
Variable Attenuation: 0–60 dB
Attenuation Step Size: 0.5 dB
Maximum Total Attenuation per Connection: Up to 90 dB
Fixed Attenuation: 35 dB at 6 GHz
Impedance: 50 Ohms
RF Connector Options: N-Type, SMA, QMA, TNC or 4.3-10
IIP3: Greater Than +60 dBm
P1dB: Greater Than +36 dBm
Recommended Maximum Signal Level: +30 dBm
No-Damage Signal Level: +36 dBm Maximum
Port A-to-Port A Isolation: 100 dB with Single Connection; 45 dB with Multiple Connections
Port B-to-Port B Isolation: 80 dB with Single Connection; 45 dB with Multiple Connections
Port A-to-Port B Isolation: 100 dB
On/Off Isolation: 100 dB; 70 dB Minimum Normalized to Path Insertion Loss
Return Loss: 13 dB Minimum
Remote Control: Ethernet, Telnet, SNMP and TCP/IP
Expansion Interface: XR Bus
Software Interfaces: Fast Ethernet API and Embedded Web Server
Optional Management Software: Q-LAAMP
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 20 W
Mechanical Format: 3RU Rackmount
Dimensions: 5.25 in. H × 19 in. W × 25.25 in. D
Net Weight: 30 lb.
Gross Weight: 40 lb.

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
