Quintech QX12200V4X8CC4AA1002 XTREME 32 4×8 RF Matrix, 850–2500 MHz

Quintech QX12200V4X8CC4AA1002 XTREME 32 4×8 RF Matrix, 850–2500 MHz

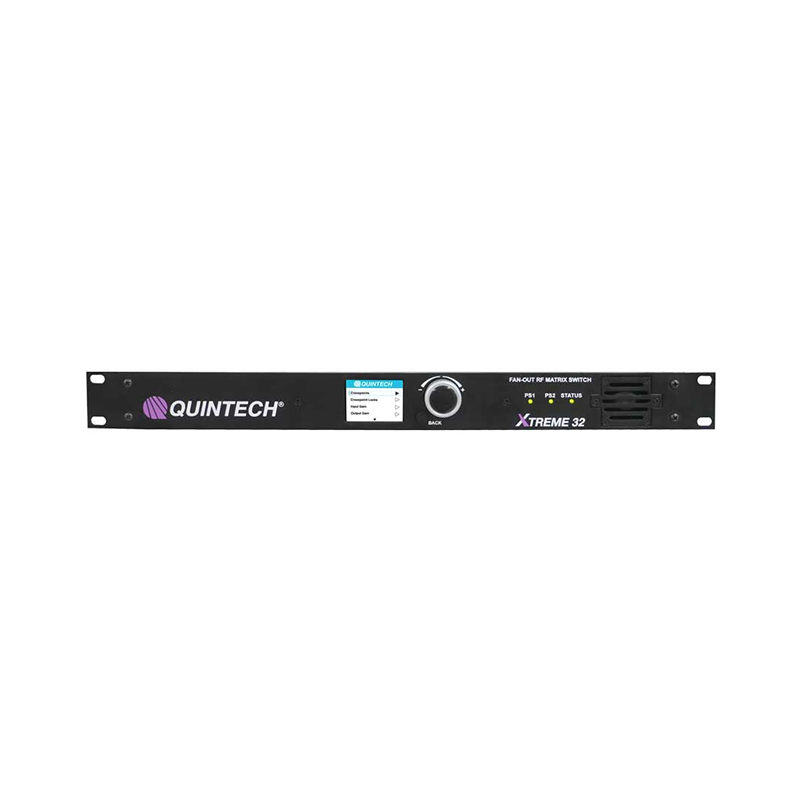

The Quintech QX12200V4X8CC4AA1002 is an XTREME 32 full fan-out RF matrix switch configured with four inputs, eight outputs and 50-ohm BNC connectors. It routes any input to any or all outputs across the 850–2500 MHz frequency range and can expand to a 16×16 configuration within the same compact 1RU chassis.

Its distributive, non-blocking architecture supports simultaneous one-to-one and one-to-many signal routing. Independently adjustable input and output gain allows signal levels and cable losses to be balanced throughout the matrix. AGC and RF sensing provide automated level management, while Q-Sense can switch from a primary input to its paired backup when the primary signal falls below a selected threshold.

Hot-swappable input and output modules, redundant hot-swappable power supplies with separate AC inlets and a field-replaceable cooling fan help maximize system availability. Optional 13/18 VDC LNB power with 22 kHz tone is also supported.

Local control is provided through a front-panel LCD and rotary knob. Dual Gigabit Ethernet ports support secure web management, SNMP, TCP/IP, Telnet, macro scripting, alarms, event logging and XR Bus expansion.

Specifications:

Product Type: Fan-Out RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32
Part Number: QX12200V4X8CC4AA1002
Configured Matrix Size: 4×8
Expandable Configuration: Up to 16×16
Matrix Architecture: Distributive, Full Fan-Out and Non-Blocking
Total Chassis Capacity: 32 Combined Inputs and Outputs
Frequency Range: 850–2500 MHz
Impedance: 50 Ohms
RF Connectors: BNC Female
Default Gain: 0 dB typ.
Frequency Response, 950–1450 MHz: ±0.9625 dB
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 850–2500 MHz: ±2.5 dB
Response over Any 36 MHz, 950–1450 MHz: ±0.25 dB
Response over Any 36 MHz, 950–2150 MHz: ±0.5 dB
Response over Any 36 MHz, 850–2500 MHz: ±0.7 dB
Input P1dB at Default Gain: +3 dBm Minimum
Input P1dB at Maximum Input Gain: -10 dBm typ.
OIP3, 950–2150 MHz: +13 dBm Minimum
OIP3, 850–2500 MHz: +12 dBm Minimum
Noise Figure, 950–2150 MHz: 16 dB Maximum
Noise Figure, 850–2500 MHz: 17 dB Maximum
Input Return Loss, 950–2150 MHz: 14 dB Minimum
Output Return Loss, 950–2150 MHz: 14 dB Minimum
Input Return Loss, 850–2500 MHz: 12 dB Minimum
Output Return Loss, 850–2500 MHz: 12 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation: 50 dB Minimum
Input Gain Range: -16.5 to +16 dB
Output Gain Range: -19.5 to +12 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
AGC Tracking Range: -50 to -10 dBm Setpoint
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Automatic Input Redundancy: Q-Sense Primary/Backup Switching
Optional LNB Power: 13/18 VDC with 22 kHz Tone
Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000BASE-T Ethernet Ports
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting Language
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Supplies: Dual Hot-Swappable Redundant Supplies
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A
Power Consumption: 100 W typ.; 350 W with LNB Option
Cooling: Field-Replaceable Long-Life Fan
RF Input and Output Modules: Hot-Swappable
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11 lb.
Gross Weight: 14 lb.
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
Certifications: CE, TUV NRTL and FCC Part 15

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
