Quintech QX12200V4X4CC2AA1000 XTREME 32 4×4 Dual-Band RF Matrix

Quintech QX12200V4X4CC2AA1000 XTREME 32 4×4 Dual-Band RF Matrix

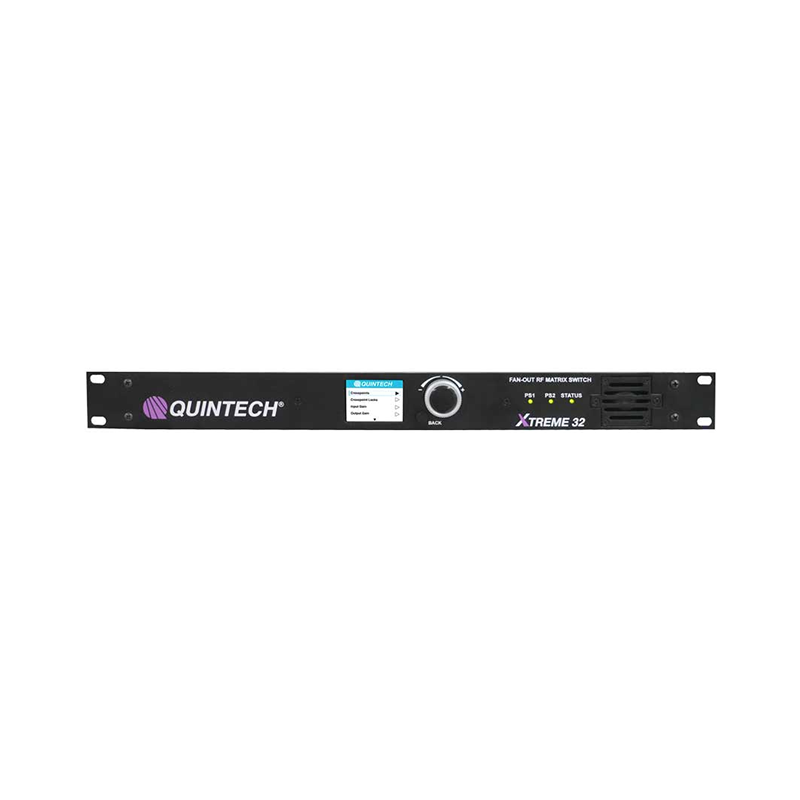

The Quintech QX12200V4X4CC2AA1000 is an XTREME 32 full fan-out dual-band RF matrix switch configured with four inputs, four outputs and 50-ohm BNC female connectors. It operates across 50–200 MHz and 850–2500 MHz and is expandable to an 8×24 configuration within the same compact 1RU chassis.

Its distributive, non-blocking architecture routes any input to any or all outputs simultaneously. Independently adjustable input and output gain compensates for differing source levels and cable losses. Integrated RF sensing and AGC support automated output-level management, while Q-Sense can automatically transfer a paired connection from its primary input to a backup when the primary signal falls below the configured threshold.

Hot-swappable input and output modules, redundant hot-swappable power supplies with separate AC inlets and a field-replaceable cooling fan improve serviceability and system availability. Optional 13/18 VDC LNB power with 22 kHz tone is also supported.

Local operation is provided through a front-panel LCD and rotary knob. Dual Gigabit Ethernet ports enable secure web management, SNMP, TCP/IP, Telnet, macro scripting, alarm reporting, event logging and XR Bus expansion.

Specifications:

Product Type: Dual-Band Fan-Out RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32
Part Number: QX12200V4X4CC2AA1000
Configured Matrix Size: 4×4
Expandable Configuration: Up to 8×24
Matrix Architecture: Distributive, Full Fan-Out and Non-Blocking
Total Chassis Capacity: 32 Combined Inputs and Outputs
Frequency Ranges: 50–200 MHz and 850–2500 MHz
Impedance: 50 Ohms
RF Connectors: BNC Female
Default Gain: 0 dB typ.
Frequency Response, 50–200 MHz: ±2.5 dB
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 850–2500 MHz: ±2.5 dB
Response over Any 36 MHz, 50–200 MHz: ±0.8 dB
Response over Any 36 MHz, 950–2150 MHz: ±0.5 dB
Response over Any 36 MHz, 850–2500 MHz: ±0.7 dB
Input P1dB at Default Gain: 0 dBm Minimum
Input P1dB at Maximum Input Gain: -10 dBm typ.
Noise Figure, 50–200 MHz: 20 dB Maximum
Noise Figure, 950–2150 MHz: 13 dB Maximum
Noise Figure, 850–2500 MHz: 14 dB Maximum
OIP3, 50–200 MHz: +9 dBm Minimum
OIP3, 950–2150 MHz: +10 dBm Minimum
OIP3, 850–2500 MHz: +9 dBm Minimum
Input Return Loss, 50–200 MHz: 12 dB Minimum
Input Return Loss, 950–2150 MHz: 14 dB Minimum
Input Return Loss, 850–2500 MHz: 12 dB Minimum
Output Return Loss, 50–200 MHz: 12 dB Minimum
Output Return Loss, 950–2150 MHz: 14 dB Minimum
Output Return Loss, 850–2500 MHz: 12 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation, 50–200 MHz: 55 dB Minimum
Input-to-Output Isolation, 850–2500 MHz: 50 dB Minimum
Input Gain Range: -23.5 to +8 dB
Output Gain Range: -15.5 to +16 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
AGC Tracking Range: -50 to -10 dBm Setpoint
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Automatic Input Redundancy: Q-Sense Primary/Backup Switching
Optional LNB Power: 13/18 VDC with 22 kHz Tone
Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000BASE-T Ethernet Ports
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting Language
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Supplies: Dual Hot-Swappable Redundant Supplies
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A Maximum
Power Consumption: 100 W typ.; 350 W with LNB Option
Cooling: Field-Replaceable Long-Life Fan
RF Input and Output Modules: Hot-Swappable
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11 lb.
Gross Weight: 13 lb.
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
Certifications: CE, TUV NRTL and FCC Part 15

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
