Quintech LS022150P1FNA000 2-Way Passive L-Band Splitter, 950–2150 MHz

Quintech LS022150P1FNA000 2-Way Passive L-Band Splitter, 950–2150 MHz

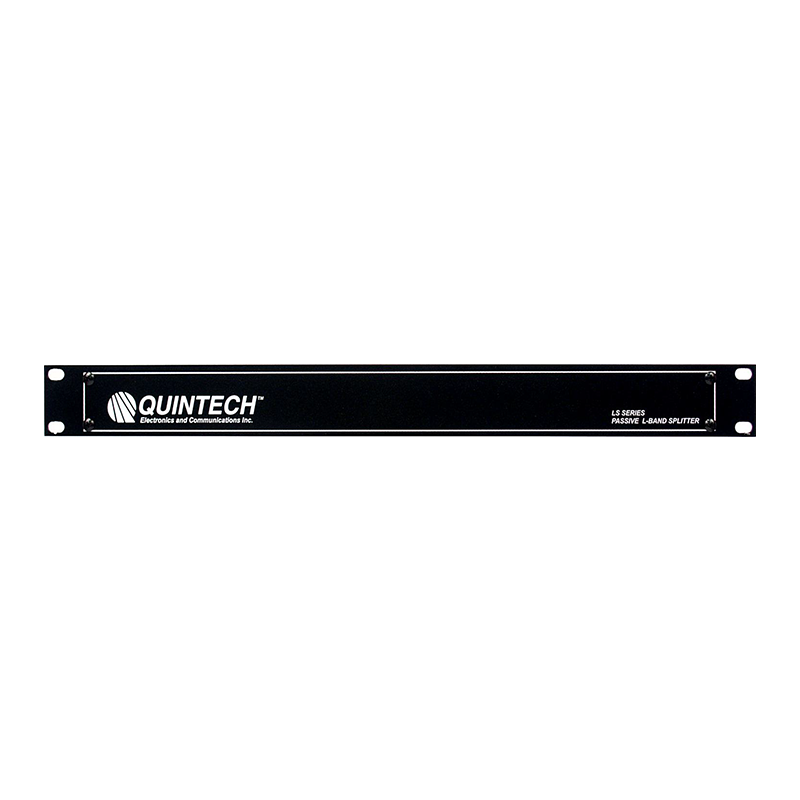

The Quintech LS022150P1FNA000 is a commercial-quality passive 2-way L-band splitter that distributes one RF input to two outputs across the 950–2150 MHz frequency range. Quintech proprietary microstrip and SMT construction provides repeatable signal levels, impedance matching and insertion-loss performance across all ports.

A rear-panel terminal permits external LNB power insertion, while Output 1 provides a second DC power-passing path. Both DC paths are diode protected, allowing redundant LNB power when the external terminal and Output 1 are powered.

The 1RU rackmount unit features 75-ohm Type F connectors for satellite, broadcast, telecommunications and RF distribution applications. All unused RF output ports must be fitted with 75-ohm terminations.

Specifications:

Product Type: 2-Way Passive L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS2 2150P
Part Number: LS022150P1FNA000
Configuration: 1 × 2
RF Inputs: 1
RF Outputs: 2
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
Insertion Loss: 4 dB ±0.5 dB
Frequency Response: ±0.5 dB
Isolation: 18 dB
Input Return Loss: 11 dB
Output Return Loss: 15 dB
RF Connectors: 75-Ohm Type F
External LNB Power Insertion: Rear-Panel Terminal
DC Power Pass: Output 1
LNB Power Redundancy: Dual Diode-Protected DC Paths
Output Termination Requirement: Unused Ports Require 75-Ohm Terminations
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
