Quintech XTREME 160 160-Port Fan-Out L-Band RF Matrix Switch

Quintech XTREME 160 160-Port Fan-Out L-Band RF Matrix Switch

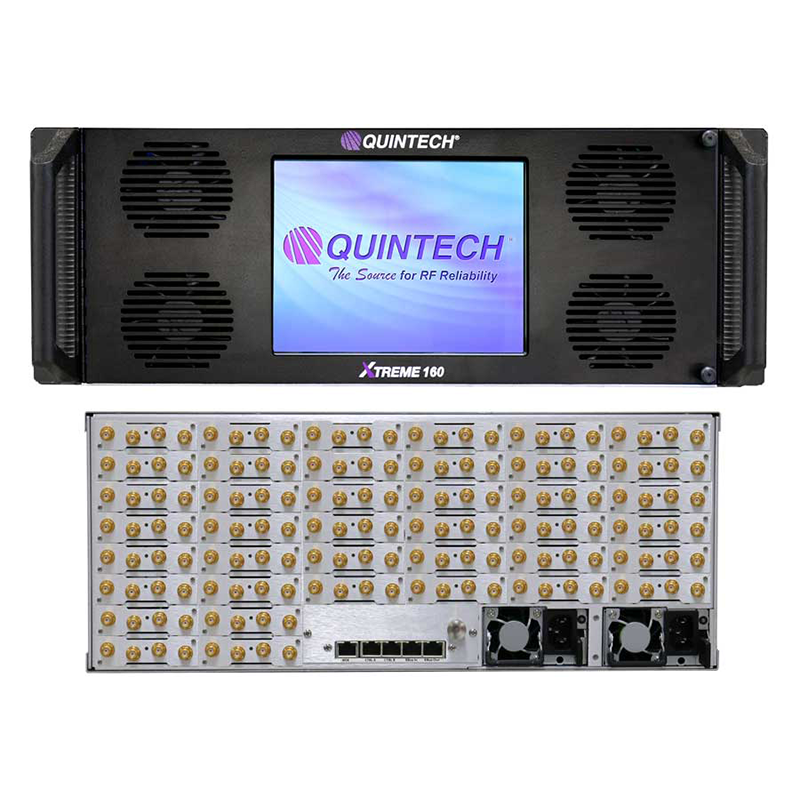

The Quintech XTREME 160 is a modular fan-out RF matrix switch supporting up to 160 combined input and output ports in a compact 4RU chassis. Its distributive, non-blocking architecture routes any input to any or all outputs for satellite, broadcast, telecommunications and high-density RF signal-management systems.

The patented flexible architecture supports symmetric and asymmetric configurations, including 64×64, 48×80, 80×48, 32×128 and 128×32. Electrical signal paths cover 50–200 MHz and 850–2450 MHz, while optional optical receiver modules accept signals across 900–1650 nm.

Independent gain and attenuation control on every input and output allows signal levels and cable losses to be balanced throughout the system. Optional 13/18 VDC LNB power with 22 kHz tone supplies up to 750 mA per input, with as much as 700 W available to connected LNBs.

Redundant power and control cards, together with active modules that can be exchanged in less than 30 seconds, help maximize availability. An 8.4-inch touchscreen provides local operation, while SNMP, Telnet, TCP/IP and a web browser interface enable remote management over Ethernet.

Specifications:

Product Type: High-Density Fan-Out RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME
Model: XTREME 160
Maximum Capacity: 160 Combined Input and Output Ports
Available Configurations: 64×64, 48×80, 80×48, 32×128 and 128×32
Additional Supported Configuration: 64×96
Matrix Architecture: Distributive, Full Fan-Out and Non-Blocking
Electrical Frequency Ranges: 50–200 MHz and 850–2450 MHz
Impedance Options: 50 or 75 Ohms
RF Connector Options: Type F, 50- or 75-Ohm BNC, SMA or Mixed
Optical Input Receiver Options: SC/APC or LC/APC
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 850–2450 MHz: ±2 dB
Frequency Response over Any 36 MHz: ±0.5 dB
Input P1dB: 0 dBm
Noise Figure: 14 dB
OIP3: +10 dBm
Input Return Loss: 14 dB
Output Return Loss: 14 dB
Input-to-Input Isolation: 60 dB
Output-to-Output Isolation: 60 dB
Input-to-Output Isolation, 950–2150 MHz: 55 dB
Input-to-Output Isolation, 850–2450 MHz: 50 dB
Input Gain Range: -23.5 to +8 dB
Output Gain Range: -23.5 to +8 dB
Gain Step Size: 0.5 dB
Optional LNB Voltage: Selectable 0, 13 or 18 VDC
LNB Tone Control: 22 kHz
Maximum LNB Current per Input: 750 mA
Total LNB Power Capacity: 700 W
Optical Wavelength Range: 900–1650 nm
Optical Return Loss: 14 dB
Optical Connectors: SC/APC or LC/APC
System Redundancy: Redundant Power and Control Cards
Active-Card Replacement Time: Less Than 30 Seconds
Local Control: 8.4-Inch Touchscreen
Remote Control: SNMP, Telnet, TCP/IP and Web Browser
Network Interface: Ethernet
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 165 W typ.
Mechanical Format: 4RU Rackmount
Dimensions: 7 in. H × 19 in. W × 23.25 in. D

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
