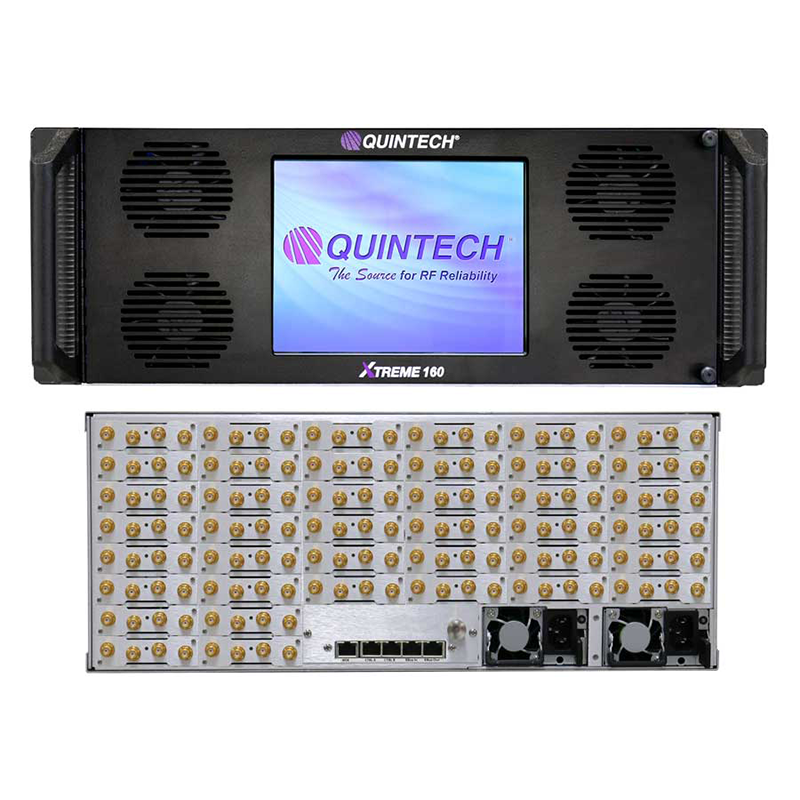

Quintech XTREME 160-C Fan-In L-Band RF Matrix Switch, 850–2450 MHz

Quintech XTREME 160-C Fan-In L-Band RF Matrix Switch, 850–2450 MHz

The Quintech XTREME 160-C is a high-density fan-in L-band RF matrix switch supporting up to 160 combined input and output ports in a compact 4RU chassis. Its combining, non-blocking architecture routes one or multiple RF inputs to an output for satellite, broadcast, telecommunications and centralized signal-monitoring systems.

The patented flexible matrix architecture supports both symmetric and asymmetric configurations, including 64×64, 80×48 and 128×32. The system operates across 850–2450 MHz and is available with 50- or 75-ohm RF interfaces, mixed connector configurations and optional fiber-optic input receivers.

Independent gain and attenuation control on every input and output permits precise signal-level adjustment and compensation for cable or distribution losses. RF cards, power supplies and control cards are hot-swappable for simplified maintenance and maximum system availability.

The XTREME 160-C includes redundant power supplies and redundant control cards. An 8.4-inch touchscreen provides local operation, while SNMP, Telnet, TCP/IP and a web browser interface enable remote control over Ethernet.

Specifications:

Product Type: High-Density Fan-In L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME
Model: XTREME 160-C
Maximum Capacity: 160 Combined Input and Output Ports
Available Configurations: 64×64, 80×48 and 128×32
Matrix Architecture: Combining, Full Fan-In and Non-Blocking
Frequency Range: 850–2450 MHz
Impedance Options: 50 or 75 Ohms
RF Connector Options: Type F, 50- or 75-Ohm BNC, SMA or Mixed
Optional Optical Input Connectors: SC/APC or LC/APC
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 850–2450 MHz: ±2 dB
Frequency Response over Any 36 MHz: ±0.5 dB
Input P1dB: 0 dBm
Noise Figure: 14 dB at 0 dB Gain
OIP3: +10 dBm
Input Return Loss: 14 dB
Output Return Loss: 14 dB
Input-to-Input Isolation: 60 dB
Output-to-Output Isolation: 60 dB
Input-to-Output Isolation, 950–2150 MHz: 55 dB
Input-to-Output Isolation, 850–2450 MHz: 50 dB
Input Gain Range: -23.5 to +8 dB
Output Gain Range: -23.5 to +8 dB
Gain Step Size: 0.5 dB
Hot-Swappable Components: RF Cards, Power Supplies and Control Cards
Power Redundancy: Redundant Hot-Swappable Power Supplies
Control Redundancy: Redundant Hot-Swappable Control Cards
Local Control: 8.4-Inch Touchscreen
Remote Control: SNMP, Telnet, TCP/IP and Web Browser
Network Interface: Ethernet
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 160 W
Mechanical Format: 4RU Rackmount
Dimensions: 7 in. H × 19 in. W × 23.25 in. D

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
