Quintech QS/QC Series Extended L-Band Splitters and Combiners

Quintech QS/QC Series Extended L-Band Splitters and Combiners

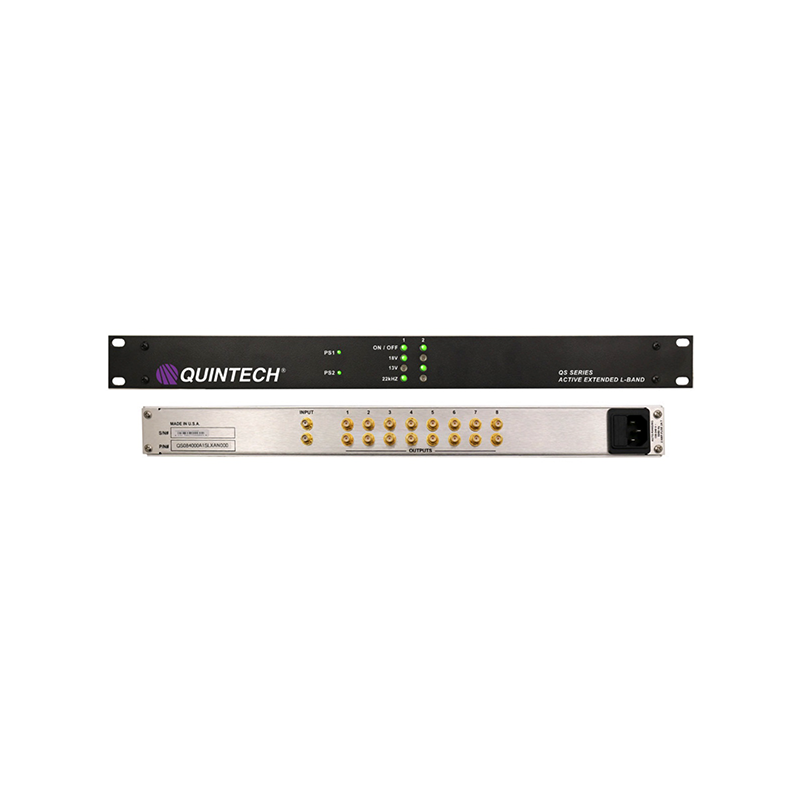

The Quintech QS/QC Series is a configurable family of extended L-band signal-distribution products based on the proven Quintech LS splitter and LC combiner platforms. QS passive splitters distribute one RF input to multiple outputs, while QC active combiners combine multiple RF inputs into one nominally zero-loss output.

Two RF bandwidth and impedance options are available: 75-ohm models cover 850–3000 MHz with Type F or BNC connectors, while 50-ohm models cover 950–4000 MHz with SMA female connectors. Configurations range from 1×2 through 1×32, including single, dual and quad divider arrangements in a compact 1RU enclosure.

The series offers optional LNB power with selectable 13/18 VDC and 22 kHz tone or fixed 24 VDC output. Single or redundant AC and DC power configurations, power-supply status monitoring and multiple connector options allow the system to be tailored for satellite, broadcast, telecommunications and wideband RF distribution applications.

Specifications:

Product Type: Extended L-Band Splitters and Combiners
Manufacturer: Quintech Electronics
Product Series: QS/QC
QS Function: Passive RF Splitting
QC Function: Active RF Combining
Available Divider Sizes: 1×2, 1×4, 1×8, 1×16 and 1×32
1×2 Configurations: Single, Dual or Quad
1×4 Configurations: Single, Dual or Quad
1×8 Configurations: Single or Dual
1×16 Configurations: Single or Dual
1×32 Configuration: Single
75-Ohm Frequency Range: 850–3000 MHz
75-Ohm RF Connectors: Type F or BNC
50-Ohm Frequency Range: 950–4000 MHz
50-Ohm RF Connectors: SMA Female

Passive QS Splitter Performance:

1×4 Insertion Loss, Full Band: 8 dB ±2 dB
1×8 Insertion Loss, Full Band: 11 dB ±3 dB
1×16 Insertion Loss, Full Band: 15 dB ±3 dB
1×4 Insertion Loss, 950–2450 MHz: 8 dB ±1.5 dB
1×8 Insertion Loss, 950–2450 MHz: 11 dB ±2 dB
1×16 Insertion Loss, 950–2450 MHz: 15 dB ±2 dB
Splitter Noise Figure, Full Band: 10 dB Maximum
Splitter Noise Figure, 950–2450 MHz: 8 dB Maximum

Active QC Combiner Performance:

Combiner Insertion Loss, Full Band: 0 dB ±2 dB
50-Ohm 1×4 Combiner Insertion Loss, Full Band: 0 dB ±1.5 dB
Combiner Insertion Loss, 950–2450 MHz: 0 dB ±1 dB
Input P1dB: 0 dBm Minimum
OIP3 at Default Gain: +10 dBm Minimum
75-Ohm Combiner Noise Figure, 850–3000 MHz: 25 dB Maximum
75-Ohm Combiner Noise Figure, 950–2450 MHz: 22 dB Maximum
50-Ohm Combiner Noise Figure, 950–4000 MHz: 23 dB Maximum
50-Ohm Combiner Noise Figure, 950–2450 MHz: 20 dB Maximum

Common RF Performance:

Input Return Loss, Full Band: 12 dB
Input Return Loss, 950–2450 MHz: 14 dB
Output Return Loss: 14 dB
Port-to-Port Isolation: 18 dB
50-Ohm Combiner Port-to-Port Isolation: 14 dB
Isolation Between Dividers: 50 dB
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

Power and LNB Options:

AC Power Input: 100–240 VAC, 50/60 Hz, 5 A
DC Power Input: 12–24 VDC or -48 VDC
DC Connection: 2-Pin Quick-Connect
Power Redundancy: Single or Redundant AC/DC Options
Power-Supply Status Monitoring: Yes
Fixed LNB Power with AC Input: 24 VDC at 500 mA
LNB Power with DC Input: Switched; Voltage Matches Input
Selectable LNB Power: 13/18 VDC with 22 kHz Tone
Maximum Selectable LNB Current: 750 mA
Power Consumption: 10 W typ., Excluding LNB Load

Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 7 in. D
Net Weight: 3 lb.
Gross Weight: 6 lb.

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
