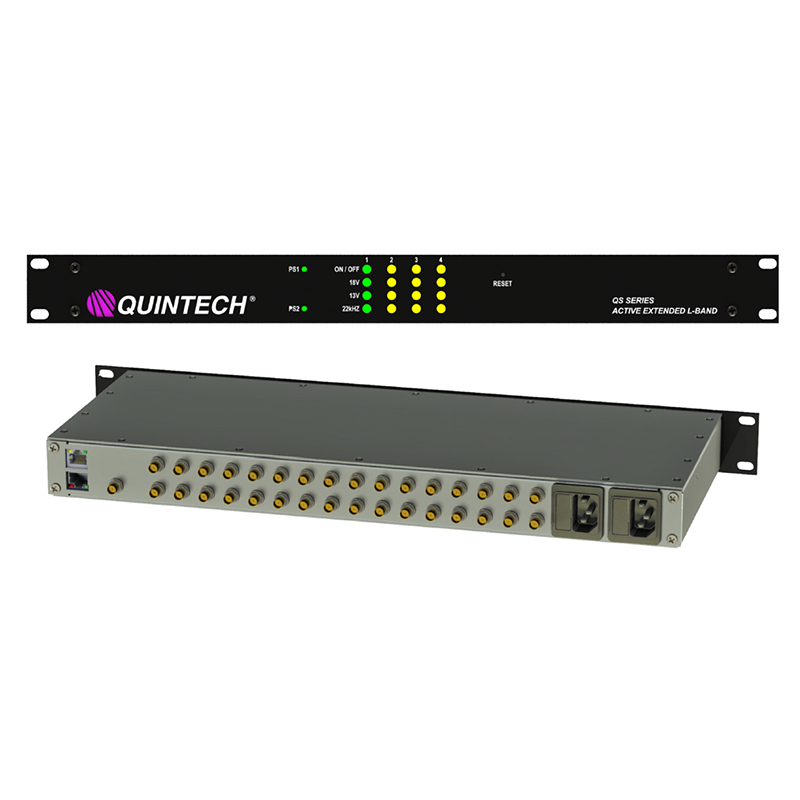

Quintech QS 75-Ohm Extended L-Band Splitter and Combiner Series, 850–3000 MHz

Quintech QS 75-Ohm Extended L-Band Splitter and Combiner Series, 850–3000 MHz

The Quintech QS 75-Ohm Series is a configurable family of extended L-band signal-distribution products operating across 850–3000 MHz. It includes passive and active RF dividers as well as active combiners for satellite, broadcast, telecommunications and centralized signal-distribution systems.

Available configurations range from single, dual or quad 1×2 and 1×4 units to single or dual 1×8 and 1×16 models and a single 1×32 configuration. All models use 75-ohm Type F or BNC female connectors and fit within a compact 1RU enclosure.

Active configurations provide nominally zero-loss performance and up to 15 dB of input gain. Signal-level and amplifier-status monitoring over Ethernet support remote supervision. Optional LNB power, adjustable 13/18 VDC output with 22 kHz tone and fixed 24 VDC power are available.

Single or redundant AC and DC power options allow the QS Series to be configured for both standard signal-distribution systems and higher-availability installations.

Specifications:

Product Type: Extended L-Band Dividers and Combiners
Manufacturer: Quintech Electronics
Product Series: QS 75-Ohm Series
Available Functions: Passive Divider, Active Divider and Active Combiner
Frequency Range: 850–3000 MHz
Impedance: 75 Ohms
RF Connector Options: Type F Female or BNC Female
Maximum Input Gain: Up to 15 dB
Ethernet Monitoring: Signal Level and Amplifier Status
Mechanical Format: 1RU Rackmount

Available Configurations:

1×2: Single, Dual or Quad
1×4: Single, Dual or Quad
1×8: Single or Dual
1×16: Single or Dual
1×32: Single

Passive Divider Performance:

1×4 Insertion Loss, 950–2450 MHz: 8 dB ±1.5 dB
1×8 Insertion Loss, 950–2450 MHz: 11 dB ±2 dB
1×16 Insertion Loss, 950–2450 MHz: 15 dB ±2 dB
1×4 Insertion Loss, 850–3000 MHz: 8 dB ±2 dB
1×8 Insertion Loss, 850–3000 MHz: 11 dB ±3 dB
1×16 Insertion Loss, 850–3000 MHz: 15 dB ±3.5 dB

Active Divider Performance:

Insertion Loss, 950–2450 MHz: 0 dB ±1 dB
Insertion Loss, 850–3000 MHz: 0 dB ±2 dB
Input P1dB: 0 dBm Minimum
Noise Figure, 950–2450 MHz: 8 dB Maximum
Noise Figure, 850–3000 MHz: 10 dB Maximum
OIP3 at Default Gain: +10 dBm Minimum

Active Combiner Performance:

Insertion Loss, 950–2450 MHz: 0 dB ±1.5 dB
Insertion Loss, 850–3000 MHz: 0 dB ±2 dB
Input P1dB: 0 dBm per Input
Noise Figure, 950–2450 MHz: 22 dB Maximum
Noise Figure, 850–3000 MHz: 25 dB Maximum
OIP3 at Default Gain: +10 dBm Minimum

Common RF Performance:

Input Return Loss, 950–2450 MHz: 14 dB Minimum
Input Return Loss, 850–3000 MHz: 12 dB Minimum
Output Return Loss: 14 dB Minimum
Port-to-Port Isolation, 950–2450 MHz: 18 dB Minimum
Port-to-Port Isolation, 850–3000 MHz: 13 dB Minimum
Isolation Between Dividers: 50 dB Minimum
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

Power and LNB Options:

AC Input Range: 100–240 VAC, 50/60 Hz, 2 A
DC Input Range: 12–24 VDC or -48 VDC
DC Connection: 2-Pin Quick-Connect
Power Configuration: Single or Redundant
Power Consumption: 10 W typ., Excluding LNB Load
Fixed LNB Power with AC Input: Switched 24 VDC at 500 mA
LNB Power with DC Input: Switched; Voltage Matches Input
Selectable LNB Power: 13/18 VDC with 22 kHz Tone
Maximum Selectable LNB Current: 750 mA

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
