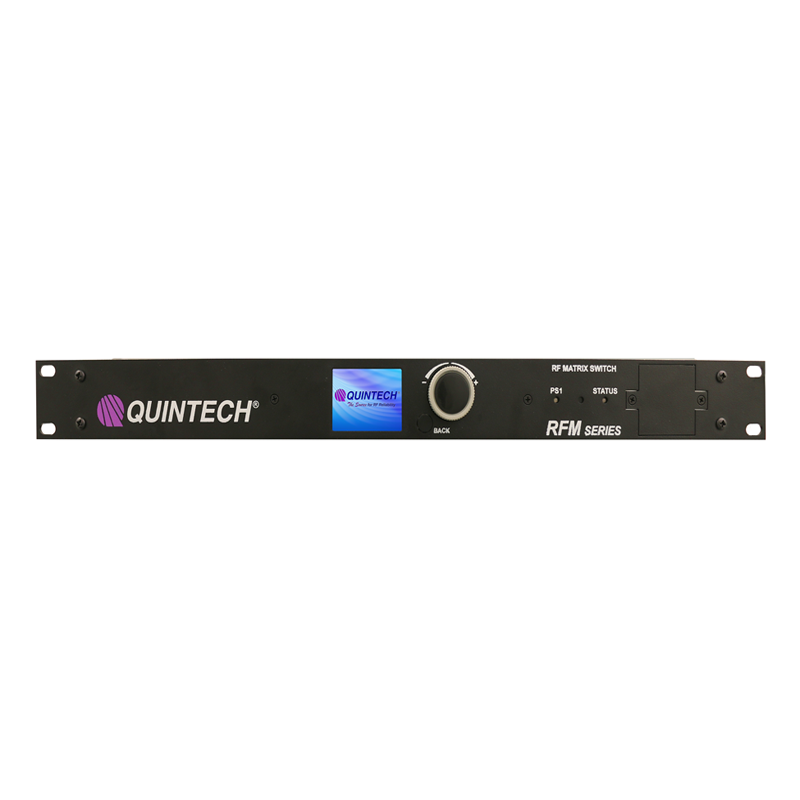

The Quintech RFM250031X1UF000 is a 31×1 wideband RF routing switch that connects any of 31 source signals to one shared output across the 5–2500 MHz frequency range. Its 75-ohm Type F interfaces support DOCSIS 3.1, satellite extended L-band and other broadband RF signals.

Designed for centralized test, measurement and signal-monitoring systems, the RFM250031X1UF000 automates the connection of multiple devices to a shared analyzer or destination. Multiple units can be cascaded through the XR Bus to expand the system to as many as 256 inputs.

Adjustable output gain from -24.5 to +7 dB in 0.5 dB steps helps compensate for varying source levels and cable losses. Local operation is provided through a front-panel LCD and rotary knob, while Gigabit Ethernet supports secure web management, SNMP, TCP/IP and Telnet control.

Specifications:

Product Type: Wideband RF Routing Switch
Manufacturer: Quintech Electronics
Product Series: RFM2500
Part Number: RFM250031X1UF000
Standard Configuration: 31×1
Expandable Configuration: Up to 256×1
Frequency Range: 5–2500 MHz
Supported Applications: DOCSIS 3.1, Extended L-Band, RF Test and Signal Monitoring
Impedance: 75 Ohms
RF Connectors: Type F Female
Default Gain: 0 dB typ.
Frequency Response, 5–1800 MHz: ±2 dB
Frequency Response, 950–2150 MHz: ±2 dB
Frequency Response, 5–2500 MHz: ±3.5 dB
Frequency Response over Any 36 MHz: ±0.3 dB
Input P1dB, 5–1800 MHz: +4 dBm Minimum
Input P1dB, 950–2150 MHz: +5 dBm Minimum
Input P1dB, 5–2500 MHz: +4 dBm Minimum
Noise Figure, 5–1800 MHz: 13 dB Maximum
Noise Figure, 950–2150 MHz: 14 dB Maximum
Noise Figure, 5–2500 MHz: 16 dB Maximum
OIP3 at Default Gain: +15 dBm Minimum
Input Return Loss: 13 dB Minimum
Output Return Loss, 5–2150 MHz: 14 dB Minimum
Output Return Loss, 5–2500 MHz: 13 dB Minimum
Input-to-Input Isolation, 5–1800 MHz: 60 dB Minimum
Input-to-Input Isolation, 950–2150 MHz: 50 dB Minimum
Input-to-Input Isolation, 5–2500 MHz: 45 dB Minimum
Input-to-Output Isolation, 5–2150 MHz: 50 dB Minimum
Input-to-Output Isolation, 5–2500 MHz: 45 dB Minimum
Output Gain Range: -24.5 to +7 dB
Gain Step Size: 0.5 dB
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Local Control: 2.2-Inch LCD with Rotary Knob
Network Interface: 10/100/1000BASE-T Ethernet
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 1.21/2.15, Port 9100
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Requirements: 100–240 VAC, 50/60 Hz, 1 A Maximum
Power Consumption: 9 W
Mechanical Format: 2RU Rackmount
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
