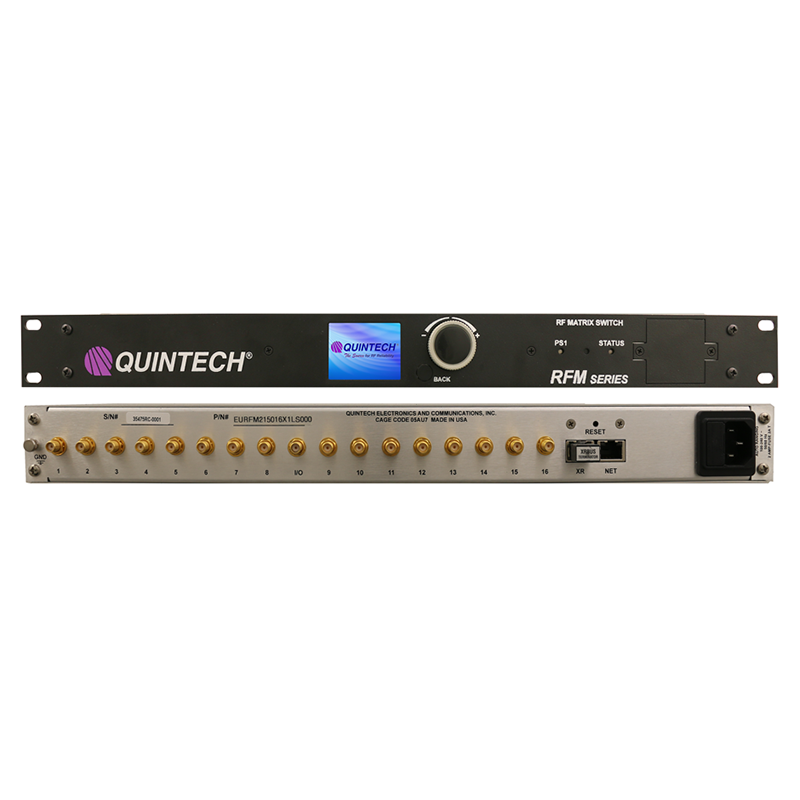

Quintech RFM250016X1LF000 16×1 RF Routing Switch, 5–2500 MHz

Quintech RFM250016X1LF000 16×1 RF Routing Switch, 5–2500 MHz

The Quintech RFM250016X1LF000 is a compact 16×1 wideband RF routing switch that connects any of 16 source signals to one shared output across the 5–2500 MHz frequency range. It can also operate in reverse as a 1×16 switch for routing one source to a selected destination.

Its 75-ohm Type F interfaces support DOCSIS 3.1, satellite extended L-band and other broadband RF signals. Designed for centralized test, measurement and monitoring applications, the RFM250016X1LF000 automates the connection of multiple devices to a shared analyzer or other RF destination.

Multiple RFM2500 units can be cascaded through the XR Bus to support as many as 256 inputs or outputs. Adjustable gain from -24.5 to +7 dB in 0.5 dB steps compensates for varying signal levels and cable losses.

Local operation is provided through a front-panel LCD and rotary knob. Gigabit Ethernet supports secure web management, SNMP, TCP/IP, Telnet, event logging and remote switching automation.

Specifications:

Product Type: Wideband RF Routing Switch
Manufacturer: Quintech Electronics
Product Series: RFM2500
Part Number: RFM250016X1LF000
Standard Configuration: 16×1
Reverse Configuration: 1×16
Expandable Configuration: Up to 256×1 or 1×256
Frequency Range: 5–2500 MHz
Supported Applications: DOCSIS 3.1, Extended L-Band, RF Test and Signal Monitoring
Impedance: 75 Ohms
RF Connectors: Type F Female
Default Gain: 0 dB typ.
Frequency Response, 5–1800 MHz: ±1.5 dB
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 5–2500 MHz: ±3 dB
Frequency Response over Any 36 MHz: ±0.3 dB
Input P1dB, 5–1800 MHz: +4 dBm Minimum
Input P1dB, 950–2150 MHz: +5 dBm Minimum
Input P1dB, 5–2500 MHz: +4 dBm Minimum
Noise Figure, 5–1800 MHz: 13 dB Maximum
Noise Figure, 950–2150 MHz: 14 dB Maximum
Noise Figure, 5–2500 MHz: 16 dB Maximum
OIP3 at Default Gain: +15 dBm Minimum
Input Return Loss: 13 dB Minimum
Output Return Loss, 5–2150 MHz: 14 dB Minimum
Output Return Loss, 5–2500 MHz: 13 dB Minimum
Input-to-Input Isolation, 5–1800 MHz: 60 dB Minimum
Input-to-Input Isolation, 950–2150 MHz: 50 dB Minimum
Input-to-Input Isolation, 5–2500 MHz: 45 dB Minimum
Input-to-Output Isolation, 5–2150 MHz: 50 dB Minimum
Input-to-Output Isolation, 5–2500 MHz: 45 dB Minimum
Gain Range: -24.5 to +7 dB
Gain Step Size: 0.5 dB
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Local Control: 2.2-Inch LCD with Rotary Knob
Network Interface: 10/100/1000BASE-T Ethernet
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 1.21/2.15, Port 9100
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Requirements: 100–240 VAC, 50/60 Hz, 1 A Maximum
Power Consumption: 9 W
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 6 lb.
Gross Weight: 9 lb.
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
