Quintech RFM220031X1UF000 RFM2200 31×1 RF Routing Switch, 950–2500 MHz

Quintech RFM220031X1UF000 RFM2200 31×1 RF Routing Switch, 950–2500 MHz, Type F

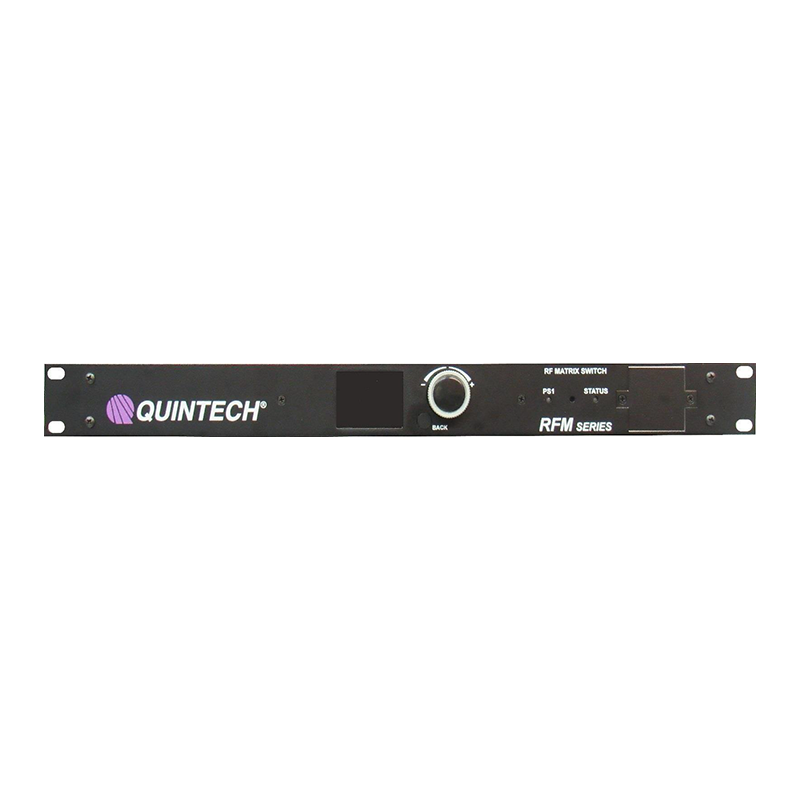

The Quintech RFM220031X1UF000 is a compact 31×1 RF routing switch that routes any of 31 source signals to a shared output port across the 950–2500 MHz extended L-band frequency range. Its modular architecture can be expanded to support as many as 256 inputs by cascading multiple RFM2200 units.

Designed for centralized RF testing, measurement and signal monitoring, the RFM220031X1UF000 automates the connection of multiple devices to a shared analyzer or destination. It provides adjustable output gain, 75-ohm Type F connectors, local front-panel operation and comprehensive remote management through Gigabit Ethernet, a secure web server, SNMP and TCP/IP.

The complete 31×1 system occupies only 2RU of rack space, making it suitable for satellite, broadcast, telecommunications and RF test facilities requiring high-density signal selection.

Specifications:

Product Type: RF Routing Switch
Manufacturer: Quintech Electronics
Product Series: RFM2200
Part Number: RFM220031X1UF000
Base Configuration: 31×1
Expandable Configuration: Up to 256×1
Frequency Range: 950–2500 MHz
RF Connectors: 75-Ohm Type F Female
Mechanical Format: 2RU Rackmount

RF Performance:

Default Gain: 0 dB typ.
Frequency Response, 950–2150 MHz: ±2 dB
Frequency Response, 950–2500 MHz: ±2.5 dB
Frequency Response Across Any 36 MHz: ±0.3 dB
Input P1dB: +5 dBm Minimum
OIP3 at Default Gain: +15 dBm Minimum
Noise Figure: 14 dB Maximum
Input Return Loss: 13 dB Minimum
Output Return Loss: 14 dB Minimum
Input-to-Input Isolation: 50 dB Minimum
Input-to-Output Isolation: 50 dB Minimum
Gain Adjustment Range: -24.5 to +7 dB
Gain Step Size: 0.5 dB
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

Control and Monitoring:

Local Control: 2.2-Inch LCD with Rotary Knob
Network Interface: 10/100/1000BASE-T Ethernet
Remote Control: Secure Web Server, SNMP, TCP/IP and Telnet
SNMP Versions: v2c and v3
TCP/IP Protocol: Quintech 1.21/2.15, Port 9100
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV

Power and Environmental:

Power Requirements: 100–240 VAC, 50/60 Hz, 1 A Maximum
Power Consumption: 9 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
