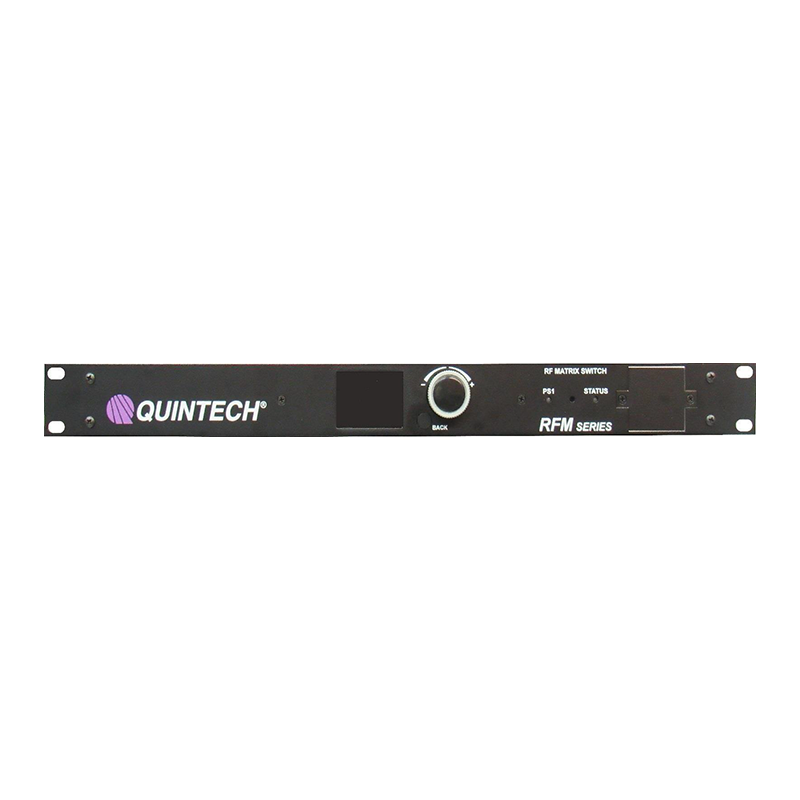

Quintech RFM2200136X1US000 RFM2200 136×1 RF Routing Switch, 950–2500 MHz

Quintech RFM2200136X1US000 RFM2200 136×1 RF Routing Switch, 950–2500 MHz

The Quintech RFM2200136X1US000 is a high-density 136×1 RF routing switch that routes any of 136 source signals to a shared output port across the 950–2500 MHz extended L-band frequency range. Its modular architecture can be expanded to support as many as 256 inputs.

Designed for centralized RF testing, measurement and signal monitoring, the RFM2200136X1US000 automates the connection of numerous devices to a shared analyzer or destination. It provides adjustable output gain, SMA female connectors, local front-panel operation and comprehensive remote control through Gigabit Ethernet, a secure web server, SNMP and TCP/IP.

The complete 136-port system occupies 9RU of rack space and provides consistent performance, high port-to-port isolation and centralized management for large-scale satellite, broadcast, telecommunications and RF test facilities.

Specifications:

Product Type: High-Density RF Routing Switch
Manufacturer: Quintech Electronics
Product Series: RFM2200
Part Number: RFM2200136X1US000
Base Configuration: 136×1
Expandable Configuration: Up to 256×1
Frequency Range: 950–2500 MHz
RF Connectors: SMA Female
Mechanical Format: 9RU Rackmount

RF Performance:

Default Gain: 0 dB typ.
Frequency Response, 950–2150 MHz: ±2 dB
Frequency Response, 950–2500 MHz: ±2.5 dB
Frequency Response Across Any 36 MHz: ±0.3 dB
Input P1dB: +5 dBm Minimum
OIP3 at Default Gain: +15 dBm Minimum
Noise Figure: 14 dB Maximum
Input Return Loss: 13 dB Minimum
Output Return Loss: 14 dB Minimum
Input-to-Input Isolation: 50 dB Minimum
Input-to-Output Isolation: 50 dB Minimum
Gain Adjustment Range: -24.5 to +7 dB
Gain Step Size: 0.5 dB
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

Control and Monitoring:

Local Control: 2.2-Inch LCD with Rotary Knob
Network Interface: 10/100/1000BASE-T Ethernet
Remote Control: Secure Web Server, SNMP, TCP/IP and Telnet
SNMP Versions: v2c and v3
TCP/IP Protocol: Quintech 1.21/2.15, Port 9100
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV

Power and Environmental:

Power Requirements: 100–240 VAC, 50/60 Hz, 1 A Maximum
Power Consumption: 80 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
