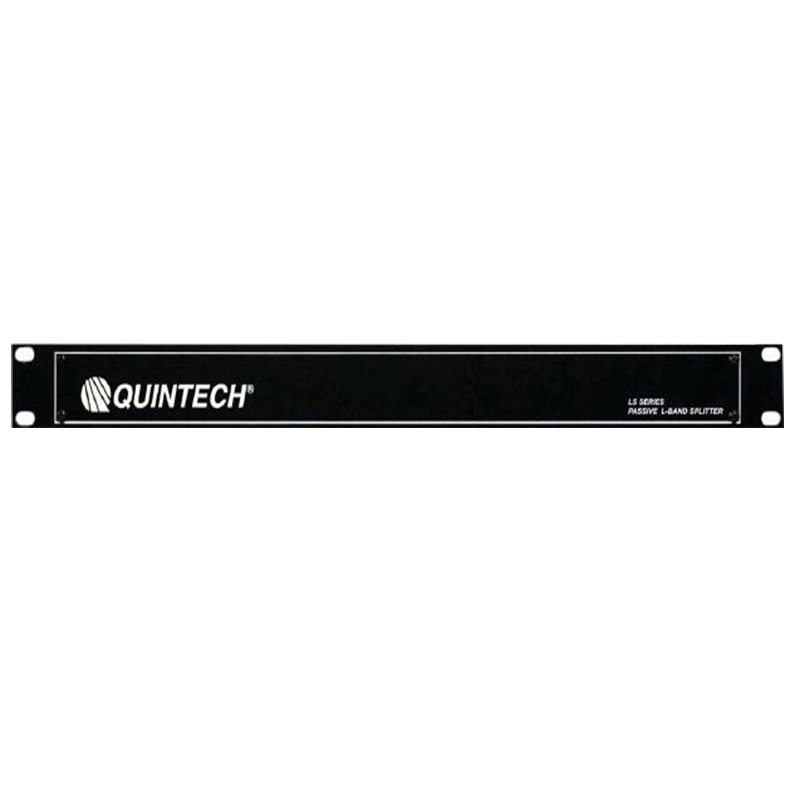

The Quintech LS082150P2CNA000 is a commercial-quality dual 8-way passive L-band splitter containing two independent 1×8 splitter sections in a single 1RU chassis. It distributes two RF inputs to eight outputs each across the 950–2150 MHz frequency range.

Built with Quintech proprietary microstrip and SMT technology, the LS082150P2CNA000 provides repeatable RF performance, reliable impedance matching and consistent signal distribution across all ports. It features 50-ohm BNC connectors and requires no AC or DC operating power.

Each splitter section provides a rear-panel terminal for external LNB power insertion, while Output 1 also passes DC power. Both paths are diode protected, providing redundant LNB power when both paths are powered.

Specifications:

Product Type: Dual 8-Way Passive L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS8 2150P
Part Number: LS082150P2CNA000
Configuration: Two Independent 1×8 Splitters
RF Inputs: 2
RF Outputs: 16
Frequency Range: 950–2150 MHz
Impedance: 50 Ohms
Insertion Loss: 12.0 ±1.5 dB
Frequency Response: ±1.2 dB
Isolation: 18 dB
Input Return Loss: 10 dB
Output Return Loss: 14 dB
RF Connectors: 50-Ohm BNC
LNB Power Insertion: Rear-Panel External Terminal for Each Splitter
DC Power Pass: Output 1 of Each Splitter
LNB Power Redundancy: Dual Diode-Protected DC Paths
Operating Power: None Required
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 3.2 lb.
Gross Weight: 4.2 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
