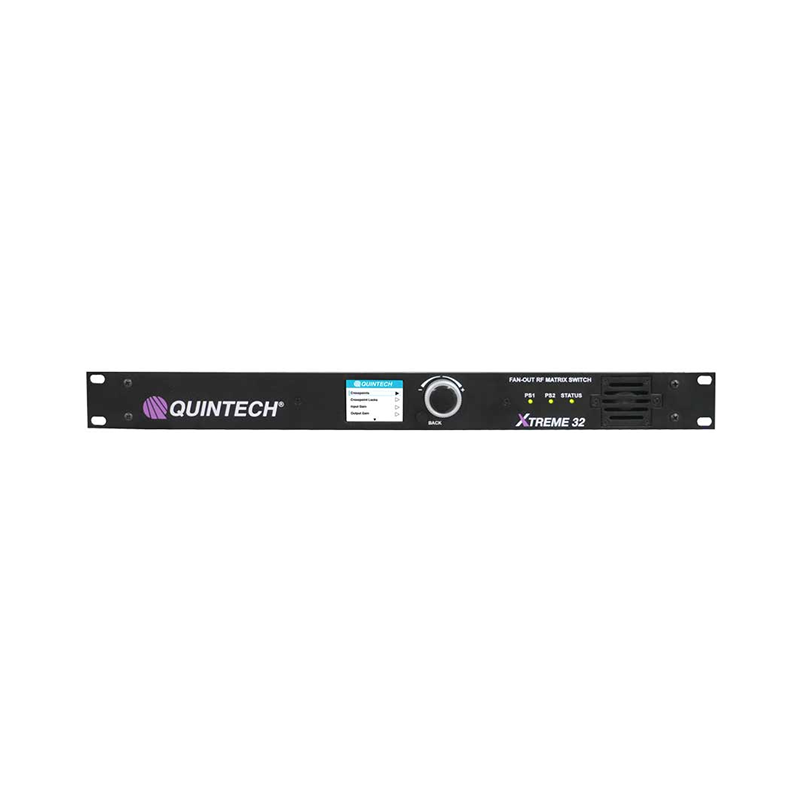

Quintech QX12200V8X24CS2AA1001 XTREME 32 8×24 Fan-Out L-Band RF Matrix Switch

Quintech QX12200V8X24CS2AA1001 XTREME 32 8×24 Fan-Out L-Band RF Matrix Switch with LNB Power

The Quintech QX12200V8X24CS2AA1001 XTREME 32 is an 8×24 fan-out L-band RF matrix switch that routes any of eight RF inputs to any or all 24 outputs across the 850–2500 MHz frequency range. Its fully distributive, non-blocking architecture supports simultaneous signal distribution within a compact 1RU chassis.

Designed for satellite, broadcast, telecommunications, test and monitoring systems, the QX12200V8X24CS2AA1001 provides independent input and output gain adjustment, RF signal sensing, AGC tracking and Q-Sense automatic backup-input switching. It features 50-ohm SMA female connectors and individually controlled 0, 13 or 18 VDC LNB power with a selectable 22 kHz tone.

Hot-swappable RF modules, redundant hot-swappable power supplies with separate AC inlets, dual Gigabit Ethernet interfaces and a field-replaceable cooling fan help maximize system availability.

Specifications:

Product Type: Fan-Out L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32
Part Number: QX12200V8X24CS2AA1001
Configuration: 8×24
RF Inputs: 8
RF Outputs: 24
Matrix Architecture: Fully Distributive, Non-Blocking
Combined Input/Output Ports: 32
Frequency Range: 850–2500 MHz
Standard L-Band Performance Range: 950–2150 MHz
RF Connectors: 50-Ohm SMA Female

RF Performance:

Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 850–2500 MHz: ±2.5 dB
Response Across Any 36 MHz, 950–2150 MHz: ±0.5 dB
Response Across Any 36 MHz, 850–2500 MHz: ±0.7 dB
Input P1dB at Default Gain: 0 dBm Minimum
Input P1dB at Maximum Input Gain: -10 dBm typ.
Noise Figure at Default Gain, 950–2150 MHz: 13 dB Maximum
Noise Figure at Default Gain, 850–2500 MHz: 14 dB Maximum
Noise Figure at Maximum Input Gain, 950–2150 MHz: 9 dB typ.
Noise Figure at Maximum Input Gain, 850–2500 MHz: 10 dB typ.
OIP3, 950–2150 MHz: +10 dBm Minimum
OIP3, 850–2500 MHz: +9 dBm Minimum
Input Return Loss, 950–2150 MHz: 14 dB Minimum
Input Return Loss, 850–2500 MHz: 12 dB Minimum
Output Return Loss, 950–2150 MHz: 14 dB Minimum
Output Return Loss, 850–2500 MHz: 12 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation: 50 dB Minimum
Input Gain Range: -23.5 to +8 dB
Output Gain Range: -15.5 to +16 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
AGC Tracking Range: -50 to -10 dBm Setpoint
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

LNB Power:

LNB Voltage per Port: 0, 13 or 18 VDC
22 kHz Tone: Selectable
Total Available LNB Power: 250 W
Maximum Current per Port: 750 mA
Protection: Short-Circuit Protection with Automatic Reset
Status Monitoring: Under-Current, Short-Circuit and Normal

Control and Monitoring:

Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000BASE-T Ethernet
Remote Control: Web Server, Secure Web Server, SNMP, TCP/IP and Telnet
SNMP Versions: v2c and v3
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Automatic Redundancy: Q-Sense Primary/Backup Input Switching
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV

Power and Mechanical:

Power Supplies: Redundant, Hot-Swappable
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A Maximum
Power Consumption: 100 W typ.; Up to 350 W with LNB Power
RF Modules: Hot-Swappable Input and Output Modules
Cooling: Field-Swappable Long-Life Fan
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11.2 lb.
Gross Weight: 14 lb.
Certifications: CE, TUV NRTL and FCC Part 15
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
