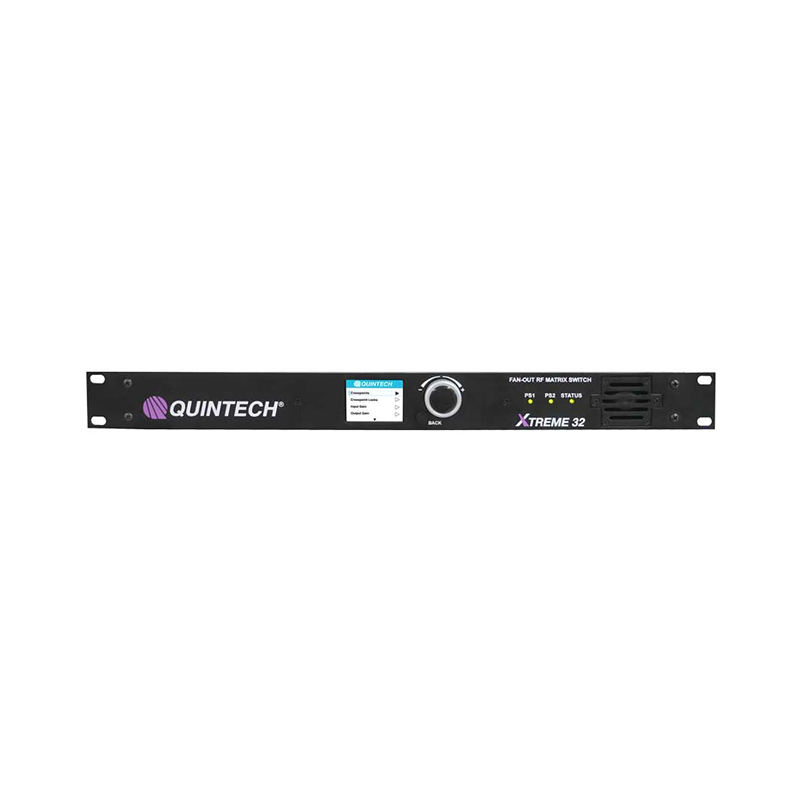

Quintech QF12200V16X16CS3AA1000 XTREME 32-C 16×16 Fan-In L-Band RF Matrix Switch

Quintech QF12200V16X16CS3AA1000 XTREME 32-C 16×16 Fan-In L-Band RF Matrix Switch

The Quintech QF12200V16X16CS3AA1000 XTREME 32-C is a 16×16 fan-in L-band RF matrix switch that combines one or more RF inputs into any output across the 850–2450 MHz frequency range. Its fully distributive, non-blocking architecture supports simultaneous signal combining and flexible routing within a compact 1RU chassis.

Designed for satellite, broadcast, telecommunications, test and monitoring systems, the QF12200V16X16CS3AA1000 provides independent input and output gain adjustment, RF signal sensing and output AGC tracking. It features 50-ohm SMA female connectors, dual Gigabit Ethernet interfaces and comprehensive local and remote management.

Hot-swappable input and output RF modules, redundant hot-swappable power supplies with separate AC inlets and a field-replaceable cooling fan help maximize system availability.

Specifications:

Product Type: Fan-In L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32-C
Part Number: QF12200V16X16CS3AA1000
Configuration: 16×16
Matrix Architecture: Fully Distributive, Non-Blocking Fan-In
Combined Input/Output Ports: 32
Frequency Range: 850–2450 MHz
Standard L-Band Performance Range: 950–2150 MHz
RF Connectors: 50-Ohm SMA Female

RF Performance:

Frequency Response, 950–2150 MHz: ±2 dB
Frequency Response, 850–2450 MHz: ±3 dB
Flatness Across Any 36 MHz, 950–2150 MHz: ±0.5 dB
Flatness Across Any 36 MHz, 850–2450 MHz: ±0.7 dB
Input P1dB at Default Gain: 0 dBm Minimum
Input P1dB at Maximum Input Gain: -15 dBm typ.
Maximum RF Output Power: Greater Than +11 dBm
Noise Figure at Default Gain, 950–2150 MHz: 13 dB Maximum, 26 dB Full Fan-In
Noise Figure at Default Gain, 850–2450 MHz: 14 dB Maximum, 26 dB Full Fan-In
Noise Figure at Maximum Input Gain, 950–2150 MHz: 6 dB typ., 21 dB Full Fan-In
Noise Figure at Maximum Input Gain, 850–2450 MHz: 7 dB typ., 21 dB Full Fan-In
OIP3, 950–2150 MHz: +10 dBm Minimum
OIP3, 850–2450 MHz: +8 dBm Minimum
Input Return Loss: 14 dB Minimum
Output Return Loss: 14 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation, 950–2150 MHz: 55 dB Minimum
Input-to-Output Isolation, 850–2450 MHz: 50 dB Minimum
Input Gain Range: -14.5 to +17 dB
Output Gain Range: -18.5 to +13 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
Output AGC Tracking Range: -50 to -10 dBm Setpoint
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

Control and Monitoring:

Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000BASE-T Ethernet
Remote Control: Web Server, Secure Web Server, SNMP, TCP/IP and Telnet
SNMP Versions: v2c and v3
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV

Power and Mechanical:

Power Supplies: Redundant, Hot-Swappable
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A Maximum
Power Consumption: 100 W typ.
RF Modules: Hot-Swappable Input and Output Modules
Cooling: Field-Swappable Long-Life Fan
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11.2 lb.
Gross Weight: 14 lb.
Certifications: CE, TUV NRTL and FCC Part 15
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
