Quintech QX12200V16X16CS4AA1000 XTREME 32 16×16 Dual-Band RF Matrix Switch

Quintech QX12200V16X16CS4AA1000 XTREME 32 16×16 Dual-Band RF Matrix Switch

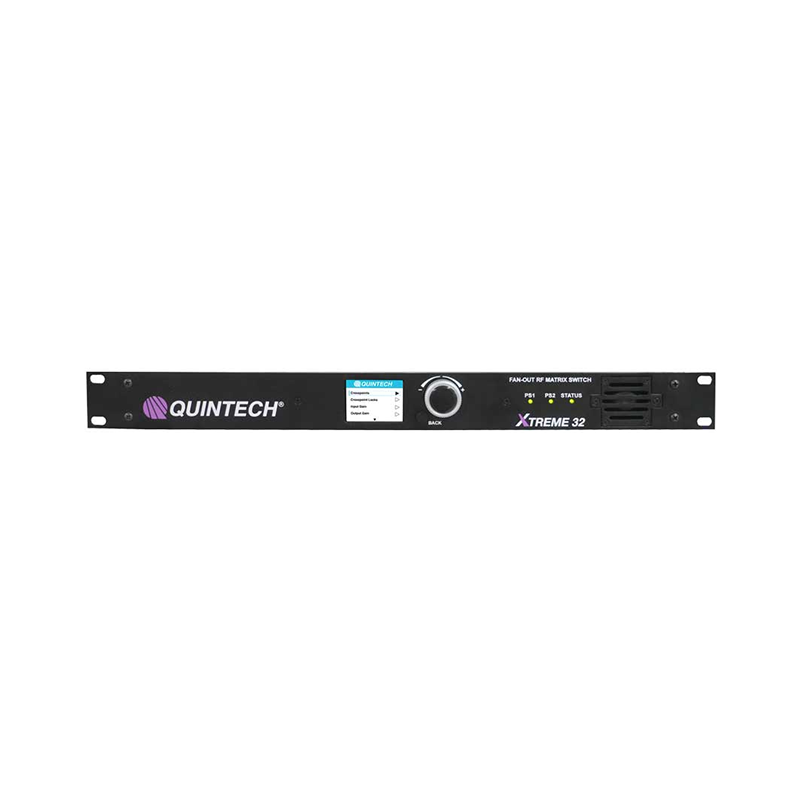

The Quintech QX12200V16X16CS4AA1000 XTREME 32 is a 16×16 fan-out RF matrix switch operating across dual 50–200 MHz and 850–2500 MHz frequency bands. Its fully distributive, non-blocking architecture allows any input to be routed to any or all outputs simultaneously.

Designed for satellite, broadcast, telecommunications, test and monitoring systems, the QX12200V16X16CS4AA1000 provides independent input and output gain adjustment, RF signal sensing, AGC tracking and Q-Sense automatic backup-input switching. It features 50-ohm SMA female connectors, dual Gigabit Ethernet interfaces and comprehensive local and remote control.

Hot-swappable RF modules, redundant hot-swappable power supplies with separate AC inlets and a field-replaceable cooling fan help maximize system availability. This AA1000 configuration does not include the optional LNB power feature.

Specifications:

Product Type: Dual-Band Fan-Out RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32
Part Number: QX12200V16X16CS4AA1000
Configuration: 16×16
Matrix Architecture: Fully Distributive, Non-Blocking
Combined Input/Output Ports: 32
Frequency Range: 50–200 MHz and 850–2500 MHz
RF Connectors: 50-Ohm SMA Female

RF Performance:

Frequency Response, 50–200 MHz: ±2.5 dB
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 850–2500 MHz: ±2.5 dB
Response Across Any 36 MHz, 50–200 MHz: ±0.8 dB
Response Across Any 36 MHz, 950–2150 MHz: ±0.5 dB
Response Across Any 36 MHz, 850–2500 MHz: ±0.7 dB
Input P1dB at Default Gain: 0 dBm Minimum
Input P1dB at Maximum Input Gain: -10 dBm typ.
Noise Figure, 50–200 MHz: 20 dB Maximum
Noise Figure, 950–2150 MHz: 13 dB Maximum
Noise Figure, 850–2500 MHz: 14 dB Maximum
OIP3, 50–200 MHz: +9 dBm Minimum
OIP3, 950–2150 MHz: +10 dBm Minimum
OIP3, 850–2500 MHz: +9 dBm Minimum
Input Return Loss, 50–200 MHz: 12 dB Minimum
Input Return Loss, 950–2150 MHz: 14 dB Minimum
Input Return Loss, 850–2500 MHz: 12 dB Minimum
Output Return Loss, 50–200 MHz: 12 dB Minimum
Output Return Loss, 950–2150 MHz: 14 dB Minimum
Output Return Loss, 850–2500 MHz: 12 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation, 50–200 MHz: 55 dB Minimum
Input-to-Output Isolation, 850–2500 MHz: 50 dB Minimum
Input Gain Range: -19.5 to +12 dB
Output Gain Range: -15.5 to +16 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
AGC Tracking Range: -50 to -10 dBm Setpoint
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

Control and Monitoring:

Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000BASE-T Ethernet
Remote Control: Web Server, Secure Web Server, SNMP, TCP/IP and Telnet
SNMP Versions: v2c and v3
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Automatic Redundancy: Q-Sense Primary/Backup Input Switching
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV

Power and Mechanical:

Power Supplies: Redundant, Hot-Swappable
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A Maximum
Power Consumption: 100 W typ.
RF Modules: Hot-Swappable Input and Output Modules
Cooling: Field-Swappable Long-Life Fan
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11.2 lb.
Gross Weight: 14 lb.
Certifications: CE, TUV NRTL and FCC Part 15
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
