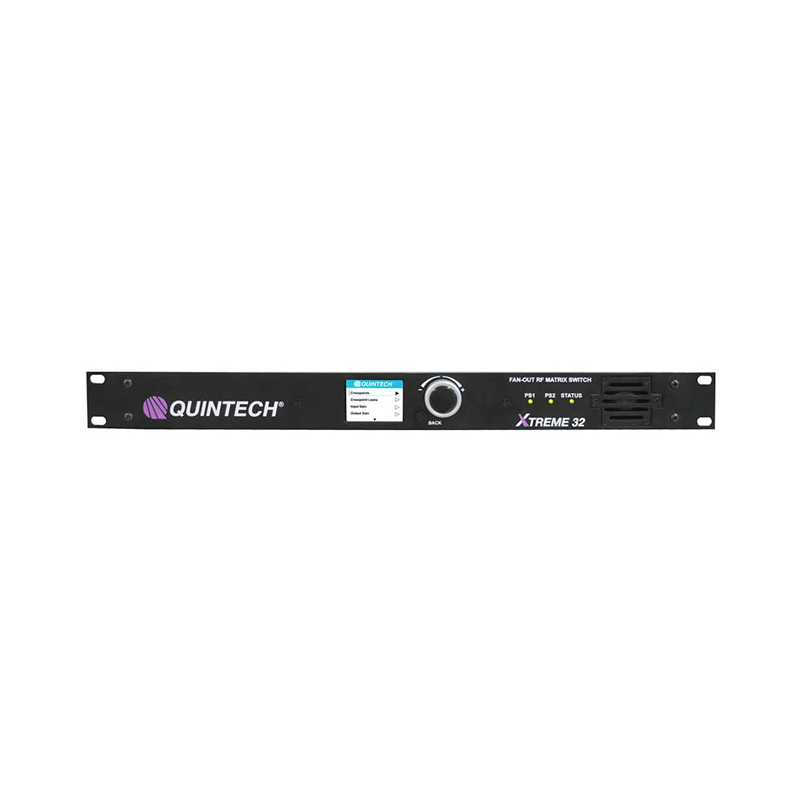

Quintech QX12200V16X16CS4AA1001 XTREME 32 16×16 L-Band RF Matrix

Quintech QX12200V16X16CS4AA1001 XTREME 32 16×16 L-Band RF Matrix with LNB Power

The Quintech QX12200V16X16CS4AA1001 is a fully populated XTREME 32 fan-out RF matrix switch with 16 inputs, 16 outputs and 50-ohm SMA female connectors. Its distributive, non-blocking architecture routes any input to any or all outputs across the 850–2500 MHz frequency range.

Independent input and output gain adjustment compensates for source-level differences and cable losses. Integrated RF sensing and AGC support automatic level management, while Q-Sense transfers paired signal paths from a primary input to a backup when the primary falls below the configured threshold.

Each input provides selectable 0/13/18 VDC LNB power, 22 kHz tone and up to 750 mA. The system supplies up to 250 W of total LNB power and monitors each port for normal, under-current and short-circuit conditions. Short-circuit protection resets automatically.

Hot-swappable input/output modules, redundant hot-swappable power supplies with separate AC inlets and a field-replaceable cooling fan maximize serviceability. Dual Gigabit Ethernet ports support secure web management, SNMP, TCP/IP, Telnet, macro scripting, alarms, logging and XR Bus expansion.

Specifications:

Product Type: Fan-Out L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32
Part Number: QX12200V16X16CS4AA1001
Configuration: 16×16, Fully Populated
RF Inputs: 16
RF Outputs: 16
Total Chassis Capacity: 32 Combined Inputs and Outputs
Matrix Architecture: Distributive, Full Fan-Out and Non-Blocking
Frequency Range: 850–2500 MHz
Impedance: 50 Ohms
RF Connectors: SMA Female
Default Gain: 0 dB typ.
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 850–2500 MHz: ±2.5 dB
Flatness over Any 36 MHz, 950–2150 MHz: ±0.5 dB
Flatness over Any 36 MHz, 850–2500 MHz: ±0.7 dB
Input P1dB at Default Gain: 0 dBm Minimum
Input P1dB at Maximum Input Gain: -10 dBm typ.
Noise Figure, 950–2150 MHz: 13 dB Maximum
Noise Figure, 850–2500 MHz: 14 dB Maximum
OIP3, 950–2150 MHz: +10 dBm Minimum
OIP3, 850–2500 MHz: +9 dBm Minimum
Input Return Loss, 950–2150 MHz: 14 dB Minimum
Input Return Loss, 850–2500 MHz: 12 dB Minimum
Output Return Loss, 950–2150 MHz: 14 dB Minimum
Output Return Loss, 850–2500 MHz: 12 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation: 50 dB Minimum
Input Gain Range: -19.5 to +12 dB
Output Gain Range: -15.5 to +16 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
AGC Tracking Range: -50 to -10 dBm Setpoint
Automatic Input Redundancy: Q-Sense Primary/Backup Switching
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC

LNB Power:

LNB Voltage per Input: Selectable 0, 13 or 18 VDC
LNB Tone Control: 22 kHz
Maximum LNB Current per Input: 750 mA
Total LNB Power Capacity: 250 W
Protection: Short-Circuit Protection with Automatic Reset
Port Status Monitoring: Normal, Under-Current and Short Circuit
Under-Current Threshold: Less Than 50 mA

Control and Power:

Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000BASE-T Ethernet Ports
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting Language
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Supplies: Dual Hot-Swappable Redundant Supplies
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A
Power Consumption: 100 W typ.; Up to 350 W with LNB Power
Cooling: Field-Replaceable Long-Life Fan
RF Input and Output Modules: Hot-Swappable
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11.2 lb.
Gross Weight: 14 lb.
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
Certifications: CE, TUV NRTL and FCC Part 15

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
