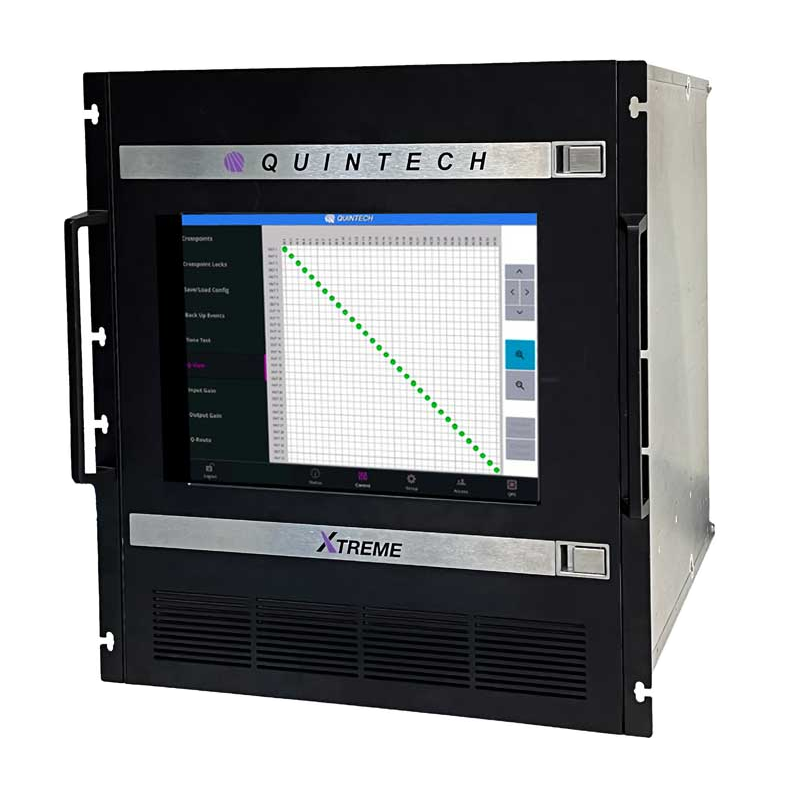

Quintech QXM2150V64X64CS1AA12000 XTREME 256 64×64 L-Band RF Matrix

Quintech QXM2150V64X64CS1AA12000 XTREME 256 64×64 L-Band RF Matrix

The Quintech QXM2150V64X64CS1AA12000 is an XTREME 256 fan-out L-band RF matrix switch configured with 64 inputs, 64 outputs and 50-ohm SMA connectors. Its distributive, non-blocking architecture routes any input to any or all outputs across the 950–2150 MHz frequency range.

The installed 64×64 configuration can expand to 128×128 within the same 12RU chassis. Independent gain adjustment on every input and output compensates for source-level differences and cable losses, while RF sensing, AGC and Q-Sense primary/backup switching support automated signal management.

Dual redundant QPE CPU controllers, redundant hot-swappable power supplies and three hot-swappable fan trays improve system availability. Input, bridge and output RF cards are also hot-swappable and can be replaced in less than one minute.

A 15-inch touchscreen provides local operation. Dedicated Ethernet interfaces support the web server and redundant controllers, with secure web management, SNMP, TCP/IP, Telnet, macro scripting, alarms, logging and XR Bus expansion.

Specifications:

Product Type: High-Density Fan-Out L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 256
Part Number: QXM2150V64X64CS1AA12000
Configured Matrix Size: 64×64
Expandable Configuration: Up to 128×128
Installed RF Inputs: 64
Installed RF Outputs: 64
Maximum Chassis Capacity: 256 Combined Inputs and Outputs
Matrix Architecture: Distributive, Full Fan-Out and Non-Blocking
Frequency Range: 950–2150 MHz
Impedance: 50 Ohms
RF Connectors: SMA Female
Optical Inputs: Not Included
Spectrum Analyzer Option: Not Included
Default Gain: 0 dB typ.
Frequency Response: ±1 dB typ.; ±2 dB Maximum
Flatness over Any 40 MHz: ±0.2 dB typ.; ±0.5 dB Maximum
Input P1dB at Default Gain: 0 dBm
Noise Figure at Default Gain: Less Than 20 dB
OIP3 at Default Gain: +10 dBm Minimum
Input Return Loss: 12 dB Minimum
Output Return Loss: 12 dB Minimum
Input-to-Input Isolation: 65 dB Minimum
Output-to-Output Isolation: 65 dB Minimum
Input-to-Output Isolation: 55 dB Minimum
Input Gain Range: -17 to +13.5 dB
Output Gain Range: -14.5 to +33 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to -5 dBm
AGC Tracking Range: -40 to -10 dBm Setpoint
Automatic Input Redundancy: Q-Sense Primary/Backup Switching
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 5 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Group Delay Variation: 5 ns
Local Control: 15-Inch Front-Panel Touchscreen
Control Architecture: Dual Redundant QPE CPU Controllers
Web Server Network Interface: 10/100/1000BASE-T Ethernet
Controller Network Interfaces: Independent 10/100BASE-T Ethernet Ports
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting Language
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Supplies: Hot-Swappable Redundant Supplies
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A
Power Consumption: 575 W at 120 VAC; 675 W at 240 VAC
Cooling: Three Hot-Swappable Long-Life Fan Trays
RF Modules: Hot-Swappable Input, Bridge and Output Cards
Mechanical Format: 12RU Rackmount
Dimensions: 21 in. H × 19 in. W × 20.5 in. D
Depth Including Rear Handles: 22 in.
Net Weight: 109 lb.
Gross Shipping Weight: 194 lb., Crated and Palletized
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: Up to 95%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
Certifications: CE, TUV NRTL and FCC Part 15
