Quintech LS042150A4FPA000 950–2150 MHz Quad 4-Way Active L-Band Splitter

Quintech LS042150A4FPA000 Quad 4-Way Active L-Band Splitter, 950–2150 MHz

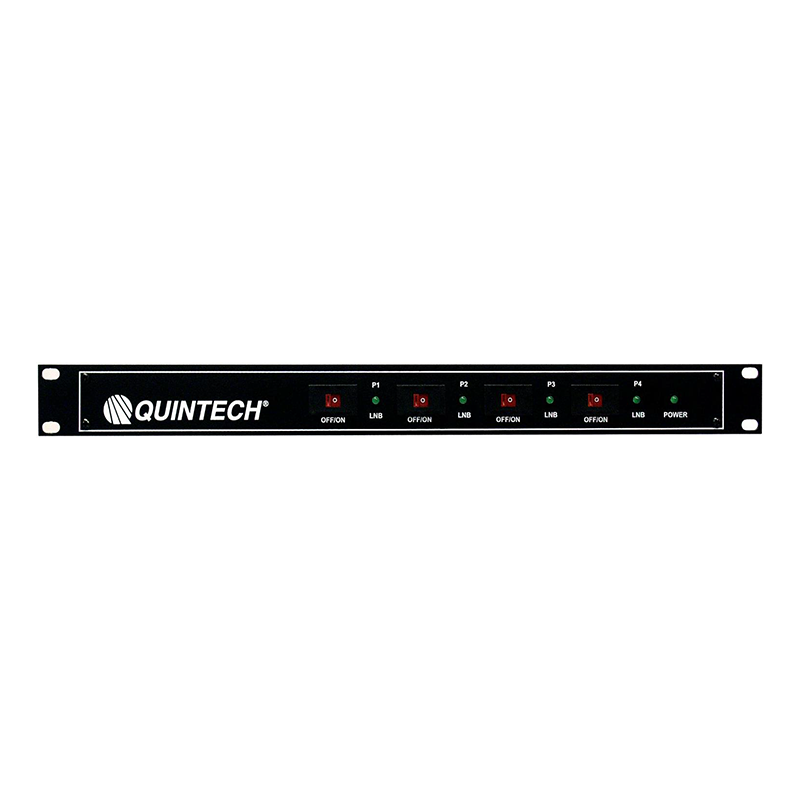

The Quintech LS042150A4FPA000 is a high-density quad 4-way active L-band splitter containing four independent 1×4 splitter sections in a single 1RU chassis. It distributes four RF inputs to 16 total outputs across the 950–2150 MHz frequency range.

Each splitter section provides zero-loss RF distribution, eliminating passive splitting loss and the need for external distribution amplifiers. Quintech proprietary microstrip and SMT technology delivers repeatable signal levels, impedance matching and performance across all RF ports.

The unit features 75-ohm Type F connectors, universal AC power and independently switchable 24 VDC LNB power for each splitter section. Up to 2 A total is available for connected LNBs. All unused RF output ports must be fitted with 75-ohm terminations.

Specifications:

Product Type: Quad 4-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS4 2150/4 AC
Part Number: LS042150A4FPA000
Configuration: Four Independent 1 × 4 Splitters
RF Inputs: 4
RF Outputs: 16
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: +3 dBm
OIP3: +17.5 dBm
Insertion Loss: 0 dB ±2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 15 dB
Noise Figure: 9 dB
RF Connectors: 75-Ohm Type F
LNB Power: Switchable 24 VDC
Maximum Total LNB Current: 2 A
LNB Power Control: Independent Front-Panel Switches
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 20 W, Excluding LNB Load
Output Termination Requirement: Unused Ports Require 75-Ohm Terminations
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Net Weight: 5.3 lb.
Gross Weight: 7.3 lb.
