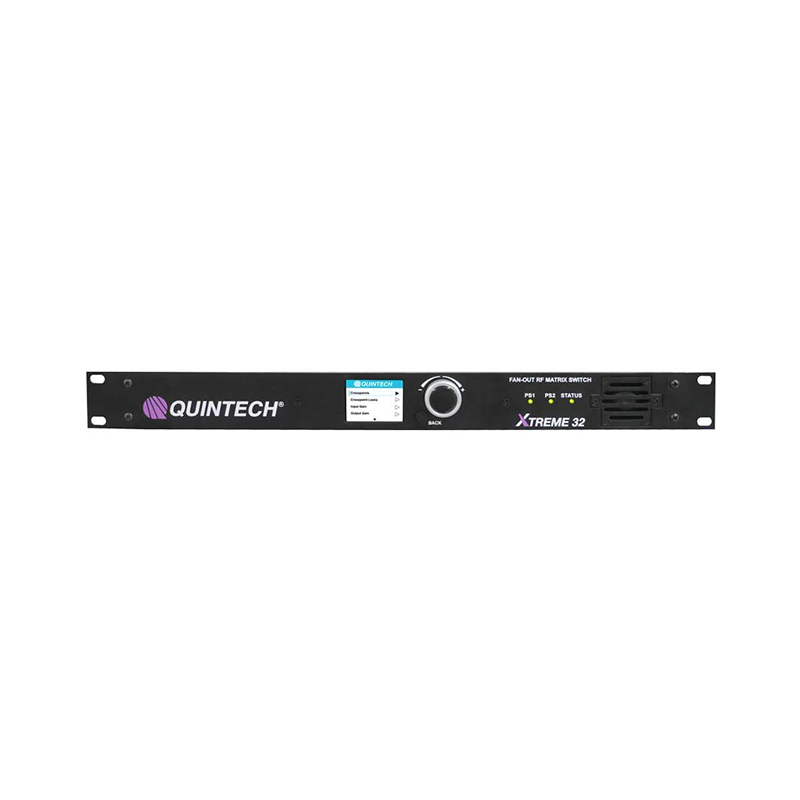

Quintech QF12200V16X16CF3AA1000 16×16 Fan-In L-Band RF Matrix

Quintech QF12200V16X16CF3AA1000 16×16 Fan-In L-Band RF Matrix

The Quintech QF12200V16X16CF3AA1000 is a fully populated XTREME 32-C fan-in L-band RF matrix switch with 16 inputs, 16 outputs and Type F female connectors. Its combining, non-blocking architecture routes one or multiple inputs to any selected output across the 850–2450 MHz frequency range.

Independent input and output gain adjustment compensates for source-level differences and cable losses. Integrated RF sensing and output AGC provide automated signal-level management, while the fan-in architecture supports centralized RF combining and distribution for satellite, broadcast and telecommunications systems.

Hot-swappable input/output modules, redundant hot-swappable power supplies with separate AC inlets and a field-replaceable cooling fan help maximize availability. Local control is provided through a front-panel LCD and rotary knob.

Dual Gigabit Ethernet interfaces support secure web management, SNMP, TCP/IP, Telnet, macro scripting, alarm reporting, event logging, time synchronization and XR Bus expansion.

Specifications:

Product Type: Fan-In L-Band RF Matrix Switch
Manufacturer: Quintech Electronics
Product Series: XTREME 32-C
Part Number: QF12200V16X16CF3AA1000
Configuration: 16×16, Fully Populated
Total Chassis Capacity: 32 Combined Inputs and Outputs
Matrix Architecture: Combining, Full Fan-In and Non-Blocking
Frequency Range: 850–2450 MHz
RF Connectors: Type F Female
Default Gain: 0 dB typ.
Frequency Response, 950–2150 MHz: ±2 dB
Frequency Response, 850–2450 MHz: ±3 dB
Flatness over Any 36 MHz, 950–2150 MHz: ±0.5 dB
Flatness over Any 36 MHz, 850–2450 MHz: ±0.7 dB
Input P1dB at Default Gain: 0 dBm Minimum
Input P1dB at Maximum Input Gain: -15 dBm typ.
Maximum RF Output Power: Greater Than +11 dBm
Noise Figure, 950–2150 MHz: 13 dB Maximum at Default Gain
Noise Figure, 850–2450 MHz: 14 dB Maximum at Default Gain
OIP3, 950–2150 MHz: +10 dBm Minimum
OIP3, 850–2450 MHz: +8 dBm Minimum
Input Return Loss: 14 dB Minimum
Output Return Loss: 14 dB Minimum
Input-to-Input Isolation: 60 dB Minimum
Output-to-Output Isolation: 60 dB Minimum
Input-to-Output Isolation, 950–2150 MHz: 55 dB Minimum
Input-to-Output Isolation, 850–2450 MHz: 50 dB Minimum
Input Gain Range: -14.5 to +17 dB
Output Gain Range: -18.5 to +13 dB
Gain Step Size: 0.5 dB
RF Sensing Range: -50 to 0 dBm
Output AGC Tracking Range: -50 to -10 dBm Setpoint
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: +20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Local Control: 2.2-Inch LCD with Rotary Knob
Network Interfaces: Dual 10/100/1000BASE-T Ethernet Ports
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 2.15, Port 9100
Automation: Macro Scripting Language
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Supplies: Dual Hot-Swappable Redundant Supplies
AC Inputs: Separate AC Inlets
Power Requirements: 100–240 VAC, 50/60 Hz, 5 A Maximum
Power Consumption: 100 W typ.
Cooling: Field-Replaceable Long-Life Fan
RF Input and Output Modules: Hot-Swappable
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 11.5 lb.
Gross Weight: 14 lb.
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
Certifications: CE, TUV NRTL and FCC Part 15

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
