Quintech LS042150A1CVA000 950–2150 MHz 4-Way Active L-Band Splitter

Quintech LS042150A1CVA000 4-Way Active L-Band Splitter, 950–2150 MHz

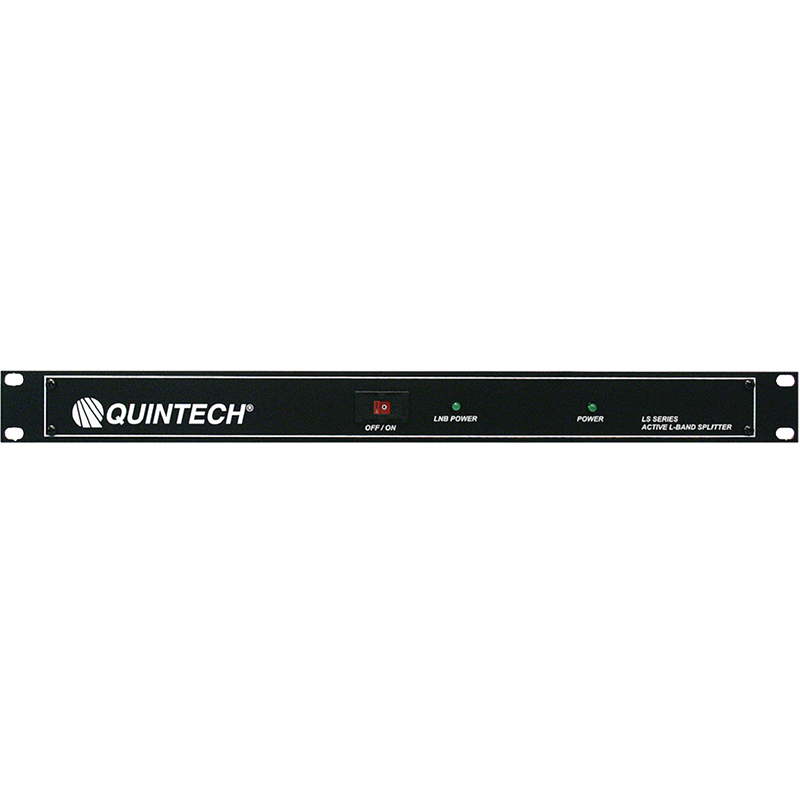

The Quintech LS042150A1CVA000 is a commercial-quality 4-way active L-band splitter that distributes one RF input to four outputs across the 950–2150 MHz frequency range. Its zero-loss design eliminates passive splitting loss and the need for an external distribution amplifier.

Built with Quintech proprietary microstrip and SMT technology, the LS042150A1CVA000 provides repeatable signal levels, impedance matching and RF performance across all output ports. It features 50-ohm BNC connectors and operates from an external 18–24 VDC supply connected through a 2-pin quick-connect barrier strip.

A front-panel slide switch controls the integrated 18 VDC LNB power insertion, which supplies up to 850 mA. All RF outputs are DC blocked, and unused output ports must be fitted with 50-ohm terminations.

Specifications:

Product Type: 4-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS4 2150A
Part Number: LS042150A1CVA000
Configuration: 1 × 4
RF Inputs: 1
RF Outputs: 4
Frequency Range: 950–2150 MHz
Impedance: 50 Ohms
P1dB: +3 dBm
OIP3: +17.5 dBm
Insertion Loss: 0 dB ±2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 11 dB
Output Return Loss: 12 dB
Noise Figure: 9 dB
RF Connectors: 50-Ohm BNC
LNB Power: Switchable 18 VDC
Maximum LNB Current: 850 mA
LNB Power Control: Front-Panel Slide Switch
DC Blocking: All RF Outputs
Power Requirements: 18–24 VDC at 1 A
Power Connection: 2-Pin Quick-Connect Barrier Strip
Power Consumption: 3 W at 18 VDC, Excluding LNB Load
Output Termination Requirement: Unused Ports Require 50-Ohm Terminations
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Weight: 5 lb.
Certification: FCC Part 15
