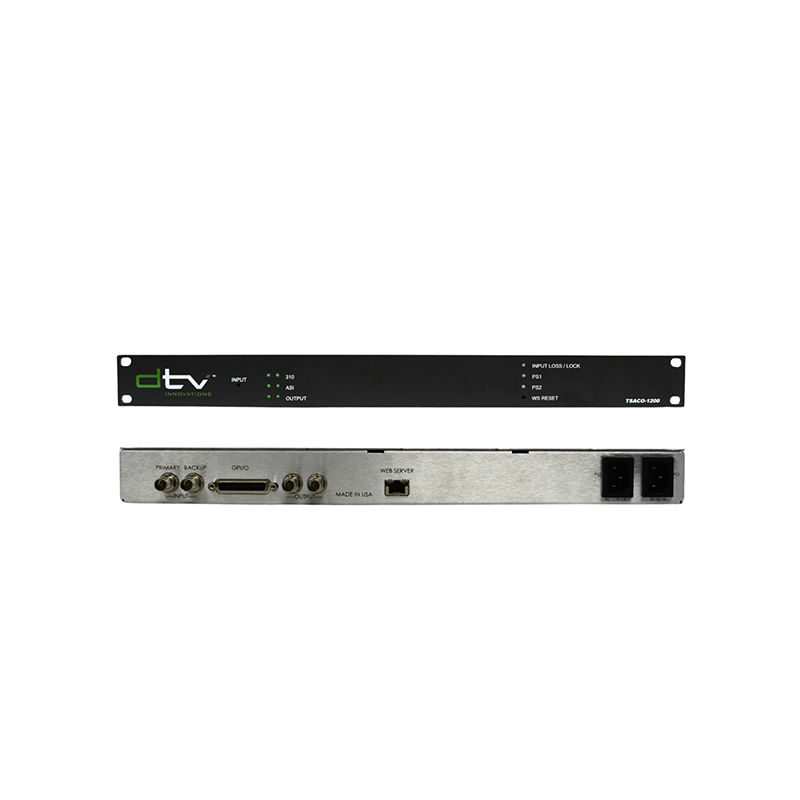

DTV Innovations TSACO-2000 Automatic Failover Switch

DTV Innovations TSACO-2000 Automatic Failover Switch

The DTV Innovations TSACO-2000 combines a professional transport-stream automatic failover switch and ASI/SMPTE-310M format converter in one compact 1 RU unit. Designed for terrestrial, cable and satellite broadcast systems, it is compliant with ATSC and DVB standards and supports ATSC Mobile DTV applications.

The TSACO-2000 automatically monitors primary and backup transport streams and switches to the backup source when a user-defined failure condition is detected. Its seamless switching maintains synchronization during the transition, helping prevent connected receivers from losing lock. Both inputs accept ASI or SMPTE-310M, while automatic format and packet-size detection simplifies operation.

ASI and SMPTE-310M outputs remain active simultaneously, allowing the TSACO-2000 to perform transport-stream format conversion as well as failover protection. An integrated web-server interface provides threshold configuration, input selection and status monitoring, while SNMP, rear-panel GPIO, relay bypass, dual power supplies and field-upgradable architecture support dependable broadcast operation.

Key Features

• Automatic primary-to-backup transport-stream switching

• Integrated ASI and SMPTE-310M format conversion

• Seamless switching maintains receiver synchronization

• Primary and backup inputs accept ASI or SMPTE-310M

• Automatic input-format and packet-size detection

• ASI and SMPTE-310M outputs active simultaneously

• Compliant with ATSC and DVB standards

• ATSC Mobile DTV ready

• Fourteen configurable failover trigger parameters

• Configurable automatic return to the primary input

• Integrated web-server configuration and monitoring

• Remote input selection and status indication

• SNMP remote monitoring

• Manual front-panel input selection and reset control

• Front-panel status and error indicators

• Relay bypass on the primary input

• Rear-panel GPIO connector

• User-defined startup configurations

• Save and load configuration support

• User login management controls

• ASI data rates up to 216 Mbps

• SMPTE-310M data rate of 19.392658 Mbps

• Single 100/1000BASE-TX Ethernet management port

• Dual power supplies for increased reliability

• Field-upgradable architecture

• Optional SMPTE 2022 transport stream over IP upgrade

• Compact 1 RU rack-mount chassis

• Maximum power consumption of 25 W

• Made in the USA
