Quintech LS022150P1FNK000 950-2150 MHz 2-Way L-Band Line Splitter

Quintech LS022150P1FNK000 950-2150 MHz 2-Way L-Band Line Splitter

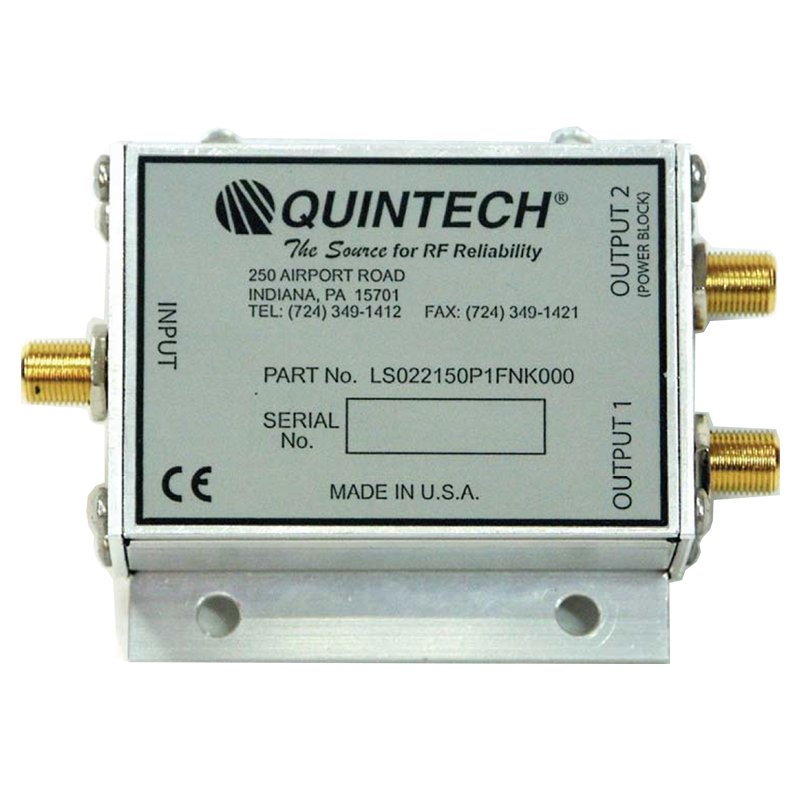

The Quintech LS022150P1FNK000 LS2 2150 is a commercial-quality passive 2-way L-band line splitter designed to distribute 950-2150 MHz satellite IF signals to multiple receivers. This 75-ohm RF splitter uses Type F connectors and delivers consistent signal levels, impedance matching, and low-loss performance across the complete frequency range.

Output 1 passes DC power, allowing a connected satellite receiver to supply power to an LNA, LNB, or block downconverter (BDC). Output 2 is DC-blocked, making the LS022150P1FNK000 suitable for multiple-receiver satellite systems requiring controlled DC power routing.

Specifications:

Product Type: Passive 2-Way L-Band Line Splitter
Manufacturer: Quintech Electronics
Product Series: LS2 2150
Part Number: LS022150P1FNK000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
Insertion Loss: 4 dB ±0.5 dB
Frequency Response: ±0.5 dB
Output-to-Output Isolation: 20 dB
Input Return Loss: 12 dB
Output Return Loss: 16 dB
RF Connectors: Type F, 75 ohms
DC Power Pass: Output 1
DC Block: Output 2
Dimensions: 3.25 in. L × 3.25 in. W × 1.25 in. H
Certification: CE
Country of Manufacture: USA

The Quintech LS022150P1FNK000 has been discontinued by the manufacturer. Please contact Esatcom Inc. to check remaining availability or identify a suitable replacement 950-2150 MHz 75-ohm L-band splitter.
