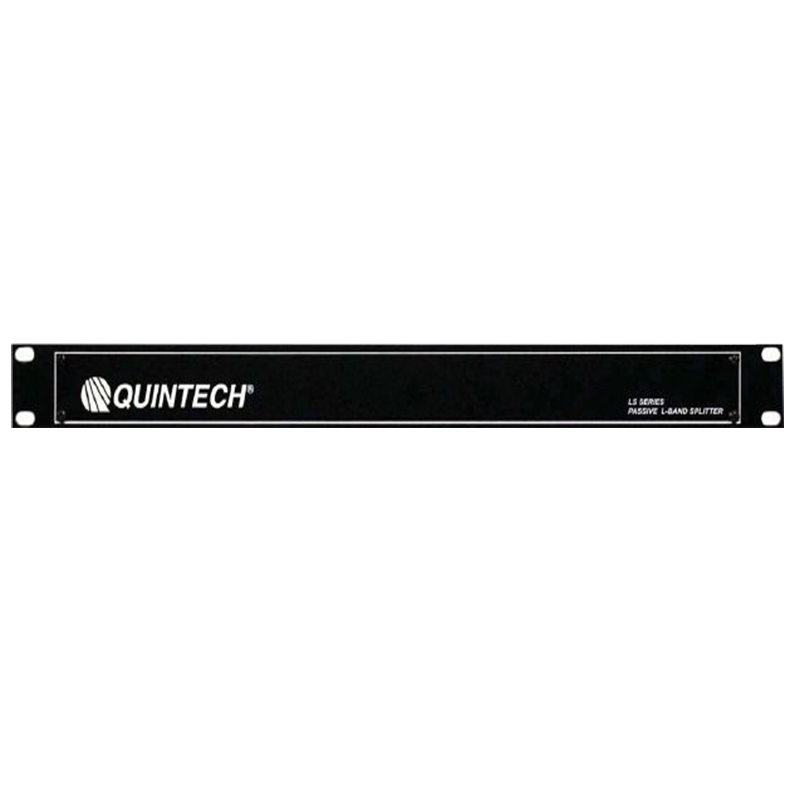

Quintech LS082150P1FNA000 950-2150 MHz 8-Way L-Band Splitter

Quintech LS082150P1FNA000 950-2150 MHz 8-Way L-Band Splitter

The Quintech LS082150P1FNA000 LS8 2150P is a commercial-quality 8-way passive L-band splitter designed to distribute 950-2150 MHz satellite IF signals to as many as eight receivers. This rackmount 75-ohm RF splitter features Type F connectors and provides consistent signal levels, impedance matching, and repeatable performance across its complete frequency range and all RF ports.

Output port 1 passes DC power from a satellite receiver to an LNB. A rear-panel terminal is also provided for external LNB power insertion.

Specifications:

Product Type: 8-Way Passive L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS8 2150P
Part Number: LS082150P1FNA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
Insertion Loss: 11 dB ±1.5 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 12 dB
Output Return Loss: 14 dB
RF Connectors: Type F, 75 ohms
LNB Power Pass: Output Port 1
External LNB Power Input: Rear-panel terminal
Mounting: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Boxed Weight: 3.5 lb.
Certification: CE
Country of Manufacture: USA

Important: All unused RF output ports must be fitted with 75-ohm terminations.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
