Quintech LS122150P1FNA000 950-2150 MHz 12-Way L-Band Splitter

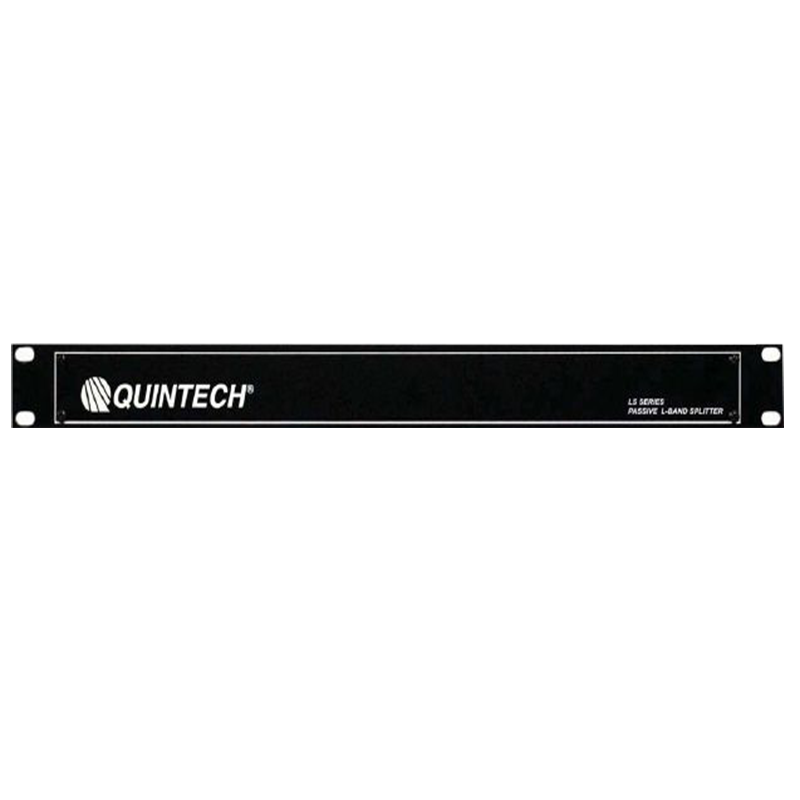

The Quintech LS122150P1FNA000 LS12 2150P is a commercial-quality 12-way passive L-band splitter designed to distribute 950-2150 MHz satellite IF signals to as many as 12 receivers. This rackmount 75-ohm RF splitter features Type F connectors and delivers consistent signal levels, impedance matching, and repeatable performance across its complete frequency range and all RF ports.
Output port 1 passes DC power from a satellite receiver to an LNB. A rear-panel terminal is also provided for external LNB power insertion. The DC paths are diode-protected, providing redundant LNB power when both sources are powered.
Specifications:
Product Type: 12-Way Passive L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS12 2150P
Part Number: LS122150P1FNA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
Insertion Loss: 17 dB ±2 dB
Frequency Response: ±2 dB
Isolation: 20 dB
Input Return Loss: 14 dB
Output Return Loss: 14 dB
RF Connectors: Type F, 75 ohms
LNB Power Pass: Output Port 1
External LNB Power Input: Rear-panel terminal
Mounting: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Boxed Weight: 3.5 lb.
Certification: CE
Country of Manufacture: USA
Important: All unused RF output ports must be fitted with 75-ohm terminations.
Available now at Esatcom Inc. Please contact us for pricing and lead time.
LS122150P1FNA000
- Type
- Passive
- Operating Frequency
- 950 - 2150 MHz
- Configuration
- 1 : 12
- Input Return Loss
- 14 dB
- Output Return Loss
- 14 dB
- Insertion Loss
- 17 ± 2 dB
- Impedance
- 75 Ω 50 Ω
- Frequency Response
- ± 2 dB
- Isolation
- 20 dB
- RF Connectors
- F-Type, BNC 75 Ω or 50 Ω
- Mechanical
- 1 RU: 1.75” H x 19” W x 6.5” D
- Gross Weight
- 4 lbs
- Net Weight
- 3 lbs
- Input Ports
- 1
- Output Ports
- 12
