Quintech LS642150A1FVC000 950-2150 MHz 64-Way Active L-Band Splitter

Quintech LS642150A1FVC000 950-2150 MHz 64-Way Active L-Band Splitter

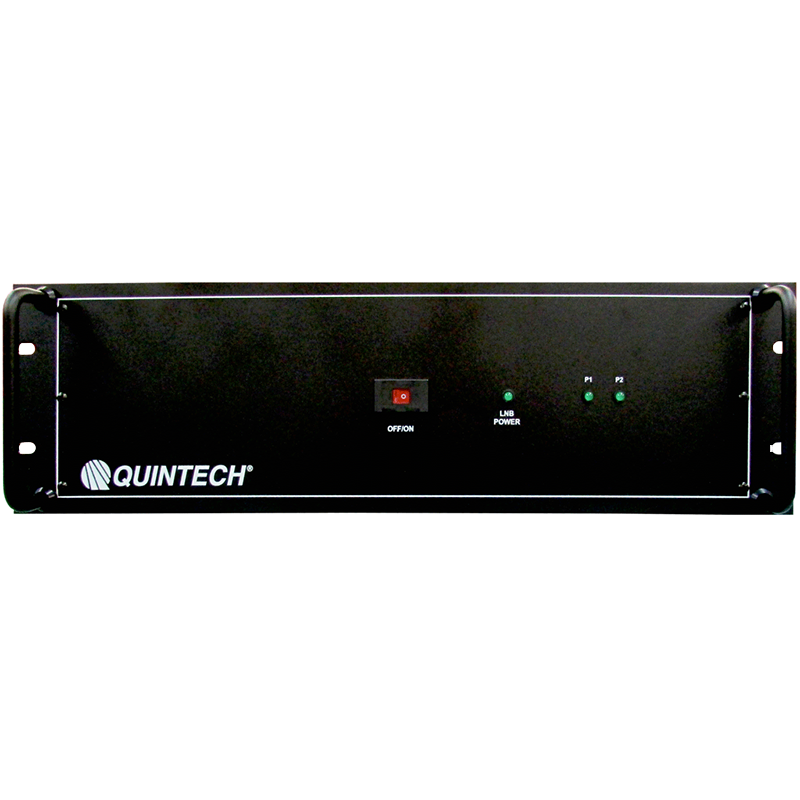

The Quintech LS642150A1FVC000 LS64 2150A is a commercial-quality 64-way active L-band splitter designed to distribute 950-2150 MHz satellite IF signals to as many as 64 receivers with zero nominal insertion loss. Its integrated amplification eliminates the need for an external distribution amplifier while providing consistent signal levels and repeatable performance across all RF ports.

The LS642150A1FVC000 provides switchable 18-24 VDC LNB power insertion controlled by a front-panel slide switch. The unit is housed in a 3 RU rackmount chassis with 75-ohm Type F connectors.

Specifications:

Product Type: 64-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS64 2150A
Part Number: LS642150A1FVC000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: -10 dBm
Insertion Loss: 0 dB ±2 dB
Frequency Response: ±2 dB
Isolation: 18 dB
Input Return Loss: 12 dB
Output Return Loss: 12 dB
Noise Figure: 11 dB
RF Connectors: Type F, 75 ohms
RF Outputs: 64
LNB Power: Switchable 18-24 VDC, 700 mA maximum
Power Requirements: 18-24 VDC
Power Connection: 2-pin quick-connect barrier strip
Power Consumption: 18 W, excluding the connected LNB load
Mounting: 3 RU rackmount
Dimensions: 5.25 in. H × 19 in. W × 20 in. D
Net Weight: 9.2 lb.
Gross Boxed Weight: 15.5 lb.
Certification: CE

Important: All unused RF output ports must be fitted with 75-ohm terminations.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
