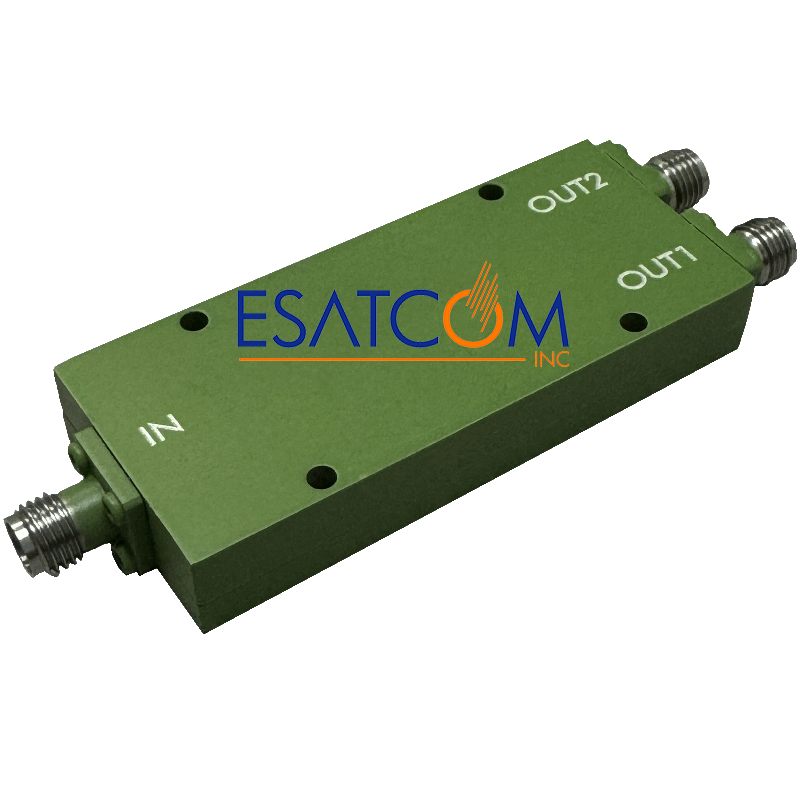

ESAT-2PD0218S 2-Way Power Divider (2–18 GHz, SMA-Female)

ESAT-2PD0218S is a high-performance 2-way power divider from Esatcom Inc., operating over an ultra-wide frequency range of 2 to 18 GHz. Engineered for reliability and precision, it features low insertion loss (typ. 0.5 dB), high output isolation (typ. 18 dB), and excellent return loss across all ports. Housed in a compact 2.25 x 1.00 x 0.38-inch aluminum enclosure with SMA female connectors, it is ideal for S-, C-, X-, and Ku-Band military and commercial applications. RoHS and REACH compliant, this unit is tested and assembled in the USA.

Frequency range: 2–18 GHz

Low insertion loss: typ. 0.5 dB
High isolation: typ. 18 dB
Excellent return loss: typ. 16–17 dB
SMA female connectors
Operating temp: -55 to +85°C
Compact size: 2.25" x 1.00" x 0.38"
RoHS & REACH compliant

Made in USA
