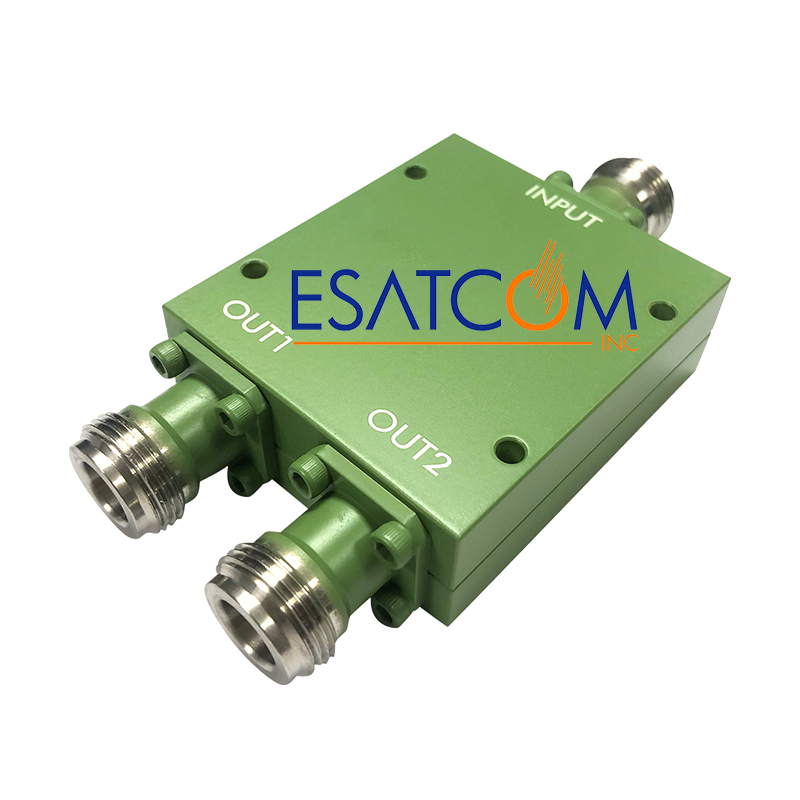

ESAT-2PD0218N 2-Way Power Divider (2–18 GHz, N-Female)
The ESAT-2PD0218N from Esatcom Inc. is a wideband 2-way in-line power divider designed for 2 to 18 GHz frequency applications. Housed in a compact 2.25" x 1.96" aluminum enclosure with N-female connectors, it offers excellent isolation, low insertion loss, and balanced performance. Ideal for lab setups and RF/microwave systems, this RoHS-compliant unit is built for indoor use and delivers reliable performance with a typical return loss of 18 dB, insertion loss of 0.5 dB, and isolation of 18 dB.

Frequency Range: 2–18 GHz
Connector Type: N-Female
Return Loss: typ. 18 dB
Insertion Loss: typ. 0.5 dB
Isolation: typ. 18 dB
Amplitude Balance: typ. ±0.32 dB
Phase Balance: typ. ±4°
Max Input Power: 30W CW
RoHS & REACH Compliant
Operating Temp: -55 to +85°C
Compact, rugged green-painted enclosure
