ESAT-3PD0218S

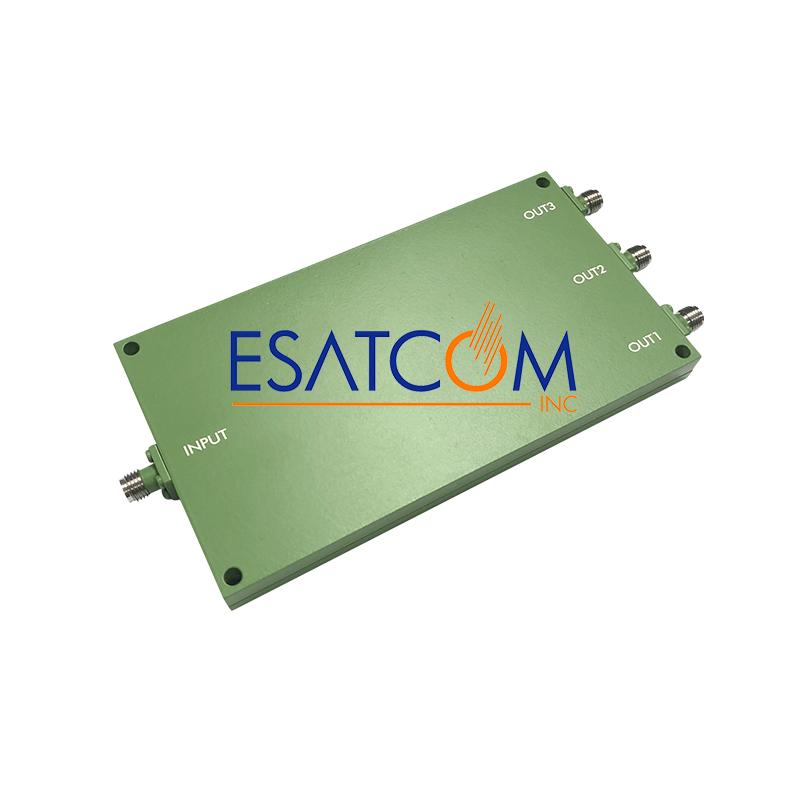

ESAT-3PD0218S 3-Way Power Divider (2–18 GHz, SMA-Female)

ESAT-3PD0218S is a compact, wideband 3-way power divider covering 2 to 18 GHz. Housed in a durable 2.25" × 1.00" × 0.38" aluminum enclosure, this true 3-way split device delivers superior amplitude and phase balance, unlike internally terminated 4-way splitters. It offers excellent insertion loss performance, high isolation (22 dB typ.), and is RoHS and REACH compliant. Ideal for demanding RF and microwave applications, the unit features SMA-F connectors and is assembled and tested in the USA.

Frequency Range: 2–18 GHz

Insertion Loss: typ. 0.8 dB above theoretical 4.78 dB

Isolation: typ. 22 dB

Amplitude Balance: typ. 0.3 dB

Phase Balance: typ. 3°

Input Power: 25 W (CW)

Connectors: SMA Female

Size: 2.25 x 1.00 x 0.38 inches

Finish: Green Paint; Stainless Steel connectors

Environment: Indoor, -55 to +85°C operation

Made in USA
