ESAT-3PD0618S

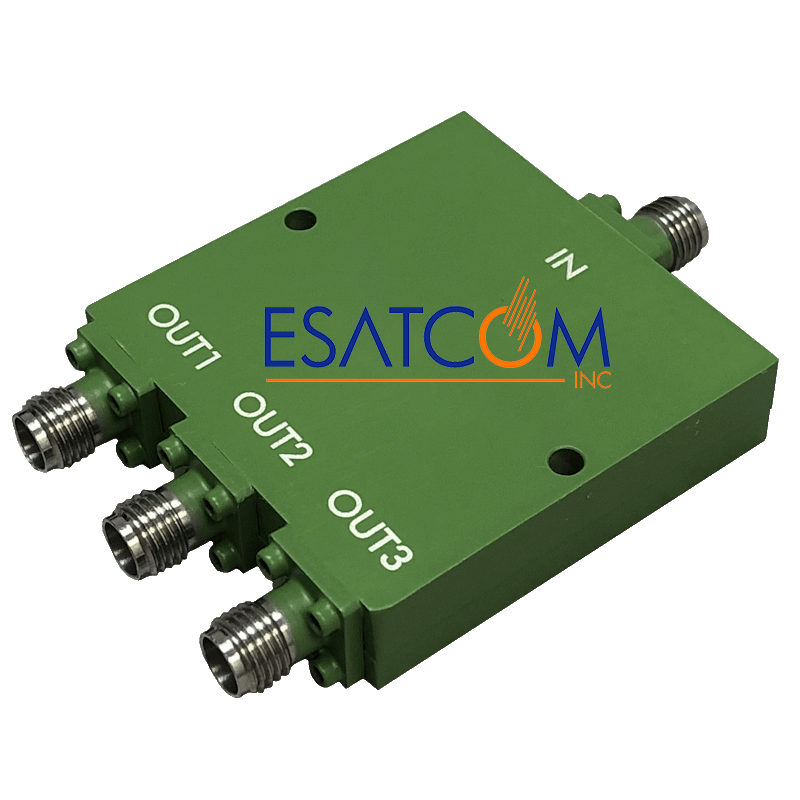

ESAT-3PD0618S 3-Way Power Divider (6–18 GHz, SMA-Female)

The ESAT-3PD0618S is a compact, high-performance 3-way Wilkinson power divider operating across the 6–18 GHz frequency range. Designed for applications in military, aerospace, and test systems, it offers low insertion loss (0.3 dB typ. above 4.8 dB), excellent port isolation (23 dB typ.), and superior amplitude and phase balance. The robust aluminum housing, SMA female connectors, and RoHS-compliant build make it a reliable solution for demanding RF environments. Manufactured and tested in the USA, this divider ensures consistent performance across a wide bandwidth from C-band to Ku-band.

Frequency Range: 6–18 GHz
Insertion Loss: 0.3 dB typical (above 4.8 dB)
Isolation: 23 dB typical
Return Loss: 14–19 dB input, up to 23 dB output
Amplitude Balance: 0.3 dB typ.
Phase Balance: 3.4° typ.
Input Power: up to 10 W CW
SMA Female connectors, aluminum enclosure
Operating Temp: -55°C to +85°C
RoHS & REACH compliant

Made in USA
