ESAT-4PD0218S

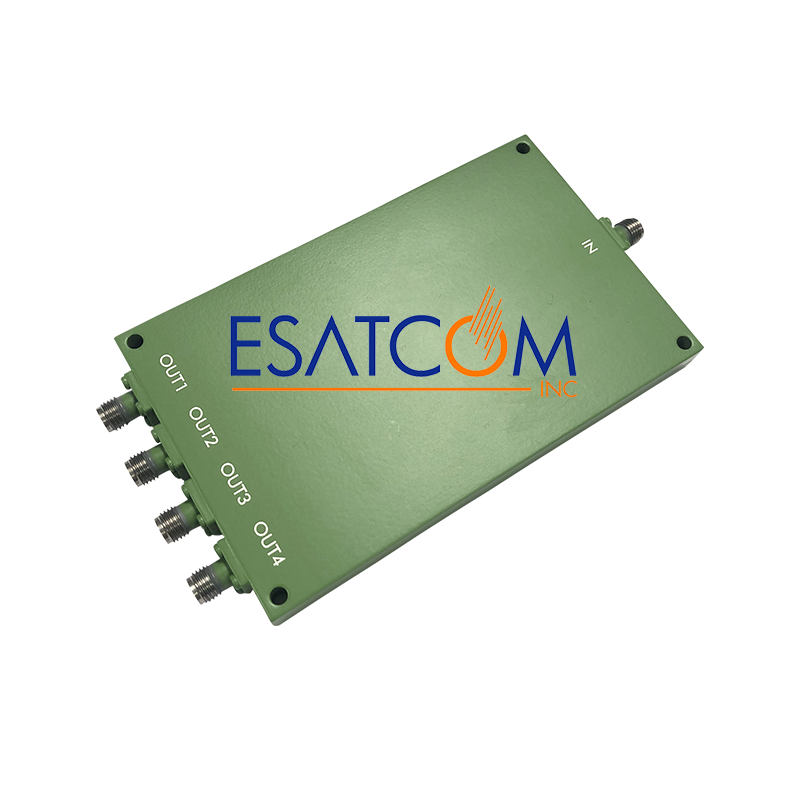

ESAT-4PD0218S 4-Way Power Divider, 2–18 GHz, SMA-Female, Wideband

The ESAT-4PD0218S is a compact 4-way wideband power divider operating from 2 to 18 GHz, covering S, C, X, and Ku bands. Housed in a durable aluminum enclosure and fitted with stainless steel SMA female connectors, it features excellent amplitude balance (typ. 0.3 dB), low insertion loss, and high isolation (typ. 18 dB). This RoHS and REACH compliant unit supports up to 30W CW input power, making it ideal for military, aerospace, and commercial RF applications requiring broadband signal splitting. Designed, assembled, and tested in the USA.

Frequency range: 2–18 GHz
4-way in-line configuration
Low insertion loss: typ. 0.8 dB over theoretical
Isolation: typ. 18 dB
Amplitude balance: typ. 0.3 dB
SMA female connectors
Compact size: 4.00 x 2.50 x 0.38 inches
Input power handling: up to 30W CW
RoHS and REACH compliant
Made in the USA
