ESAT-16PD00506S 16-Way Power Divider Wideband 0.5–6 GHz, SMA-Female

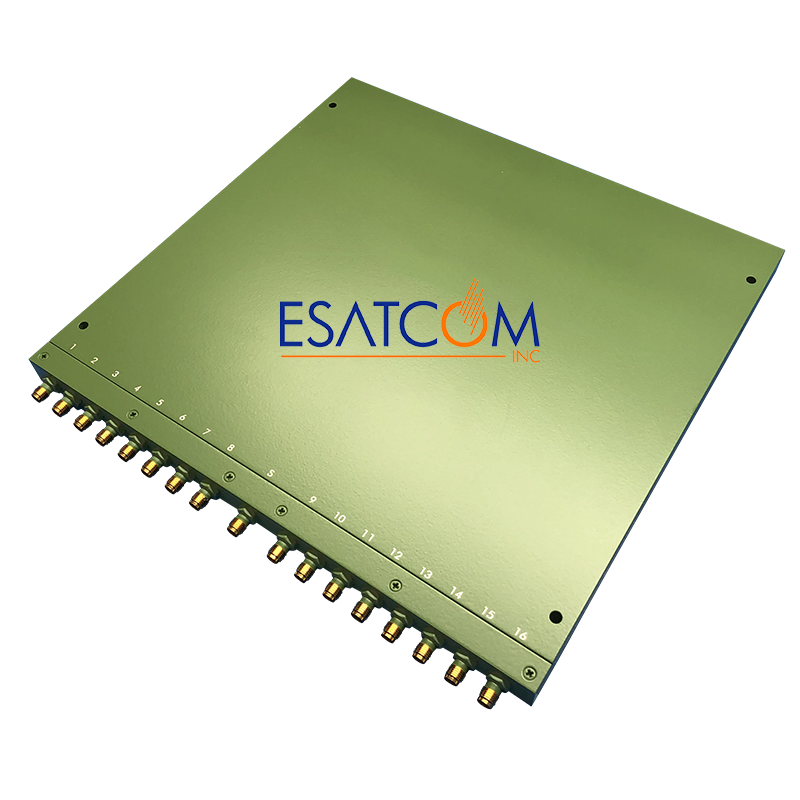

The ESAT-16PD00506S1 is a high-performance 16-way power splitter covering 500 MHz to 6 GHz, designed for commercial test and measurement systems. With its single-sided SMA-Female connector layout and slim aluminum housing, this unit is optimized for 19" rackmount integration. The device ensures excellent isolation, low insertion loss, and minimal amplitude and phase imbalance, making it ideal for broadband RF distribution applications.

Frequency Range: 500 MHz – 6 GHz
Connectors: SMA-Female (Front-Mounted)
Return Loss:

   Port S: typ. 17.2 dB
   Ports 1–16: typ. 20 dB
Insertion Loss: typ. 2.0 dB above theoretical split
Isolation:
   500–600 MHz: typ. 18 dB
   600–6000 MHz: typ. 24 dB
Amplitude Balance: typ. 0.5 dB
Phase Balance: typ. 4°
Input Power Handling: up to 30 W (CW)
Mechanical:
   Dimensions: 9.50 x 9.00 x 0.55 in
   Weight: approx. 3.4 lb (1.54 kg)
   Operating Temp: -55 to +85 °C
RoHS Compliant

Made in USA
