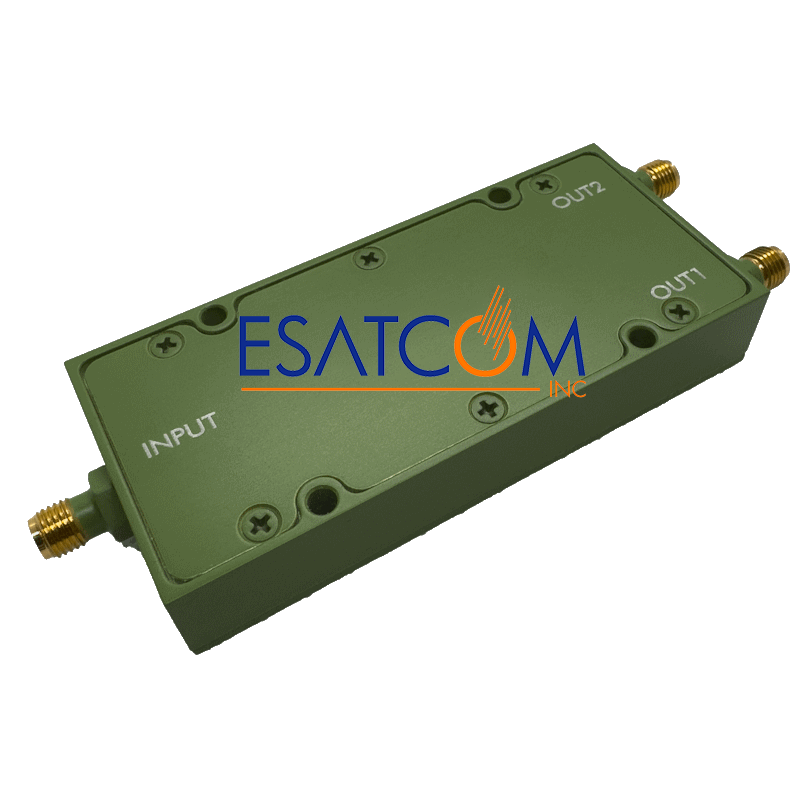

ESAT-2PD0045075S 2-Way Power Divider 0.45–7.5 GHz, SMA-Female

The ESAT-2PD0045075S from Esatcom Inc. is a wideband 2-way power divider covering 450 MHz to 7.5 GHz, designed for reliable signal splitting across UHF, L, S, and C bands. This RoHS-compliant unit is housed in a compact, rugged aluminum enclosure with versatile mounting options and high performance for both commercial and military applications.

Frequency Range: 450 MHz to 7.5 GHz
Configuration: 2-way in-line splitter
Connectors: SMA-Female
Impedance: 50 Ohm
Typical Performance:
Return Loss: typ. 17.7 dB
Insertion Loss (above 3 dB): typ. 0.9 dB
Isolation: typ. 21 dB (18 dB min from 550–7500 MHz)
Amplitude Balance: typ. 0.1 dB
Phase Balance: typ. 2.5°
Input Power Handling: up to 30W CW
Temperature Range: -40 °C to +85 °C (operating)
Construction: Aluminum enclosure with brass SMA connectors, gold plated
Compliance: RoHS & REACH compliant
Mounting: Thru-hole and panel-mount options
Size: 5.75" x 2.80" x 0.55"
