ESAT-2PD005265S

2-Way Power Divider

0.5–26.5 GHz

SMA Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

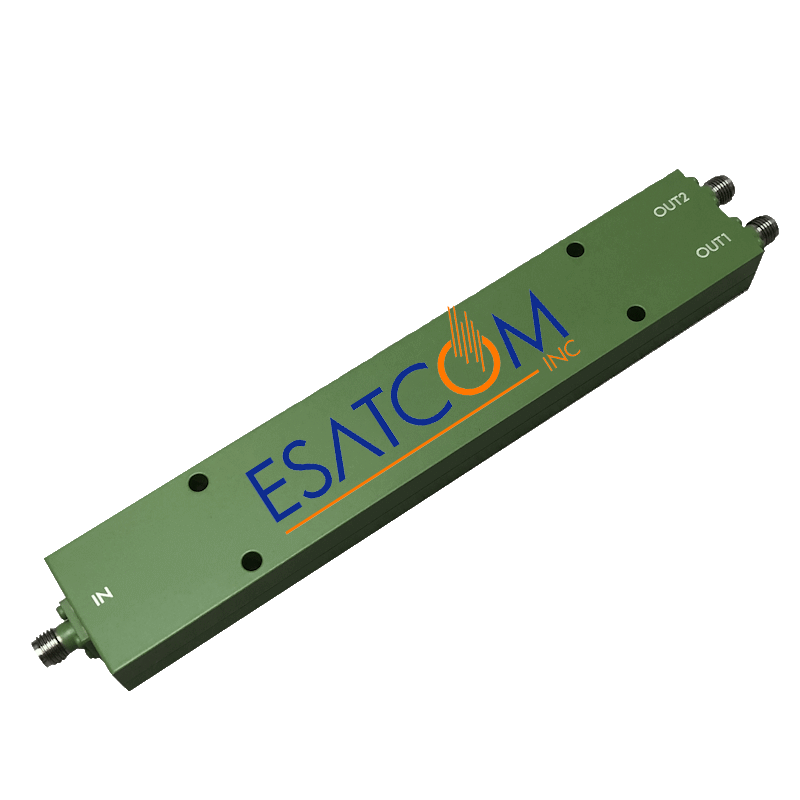

ESAT-2PD005265S 2-Way Power Divider Wideband 0.5–26.5 GHz, SMA-Female

The ESAT-2PD005265S is a high-performance 2-way power divider operating from 500 MHz to 26.5 GHz. Designed for broad compatibility in test, radar, and communication systems, this wideband splitter offers exceptional return loss, low insertion loss, and robust isolation across the entire frequency range. With SMA-Female connectors, aluminum housing, and RoHS compliance, it delivers consistent, precision performance in compact form.

Frequency Range: 500 MHz to 26.5 GHz
Connector Type: SMA-Female
Insertion Loss (typ.): 1.2 dB above 3 dB split
Return Loss (typ.): 16 dB (Port S), 14–16 dB (Port 1–2)
Isolation (typ.): 18–21 dB
Amplitude Unbalance: typ. 0.24 dB
Phase Unbalance: typ. 2.6°
Input Power Handling: 10 W CW
Temperature Range: –55 °C to +85 °C
Material: Aluminum enclosure, stainless steel connectors
Compliance: RoHS & REACH
