ESAT-2PD00506N

2-Way Power Divider

0.5–6 GHz

N Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

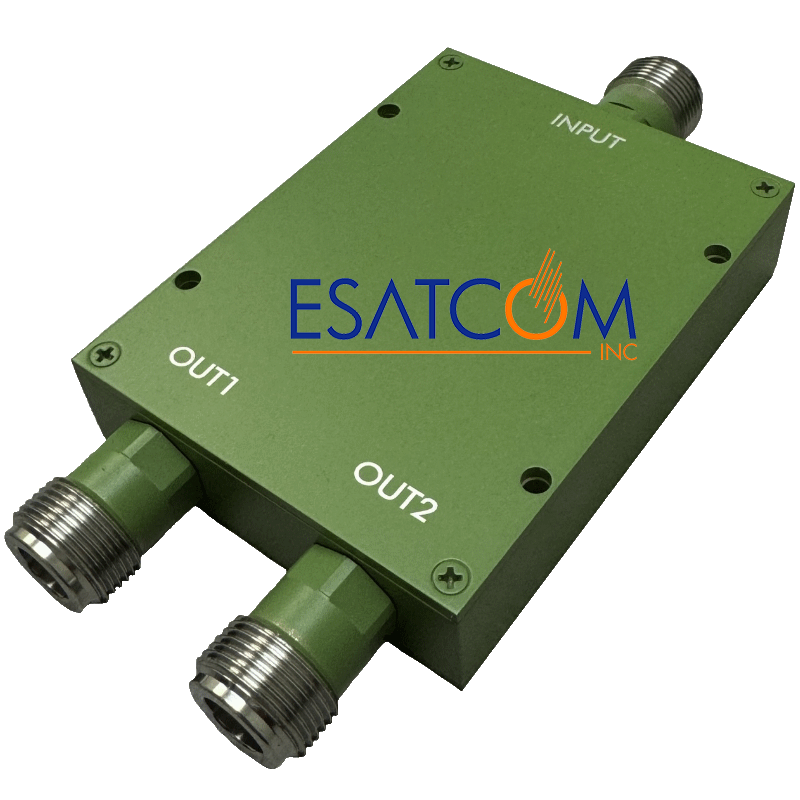

ESAT-2PD00506N 2-Way Power Divider 0.5–6 GHz, N-Female

The ESAT-2PD00506N is a compact 2-way power divider designed to cover 500 MHz to 6 GHz, making it ideal for broadband applications including 5G, 6G, and general RF test setups. With N-Female connectors and rugged aluminum housing, it delivers low insertion loss, high isolation, and tight phase and amplitude balance for dependable signal integrity across wide frequency spans.

Frequency Range: 500 MHz to 6 GHz
Connector Type: N-Female
Insertion Loss (typ.): 0.8 dB above 3.01 dB split
Return Loss (typ.): 16.5 dB (Port S), 19.8 dB (Port 1–2)
Isolation (typ.): 22.5 dB (600–6000 MHz)
Amplitude Balance (typ.): 0.2 dB
Phase Balance (typ.): 2°
Input Power Handling: 50 W CW (500–2700 MHz), 30 W CW (2700–6000 MHz)
Temperature Range: –55 °C to +85 °C
Construction: Aluminum enclosure with stainless steel connectors
Compliance: RoHS & REACH
