ESAT-2PD00506S

2-Way Power Divider

0.5–6 GHz

SMA Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

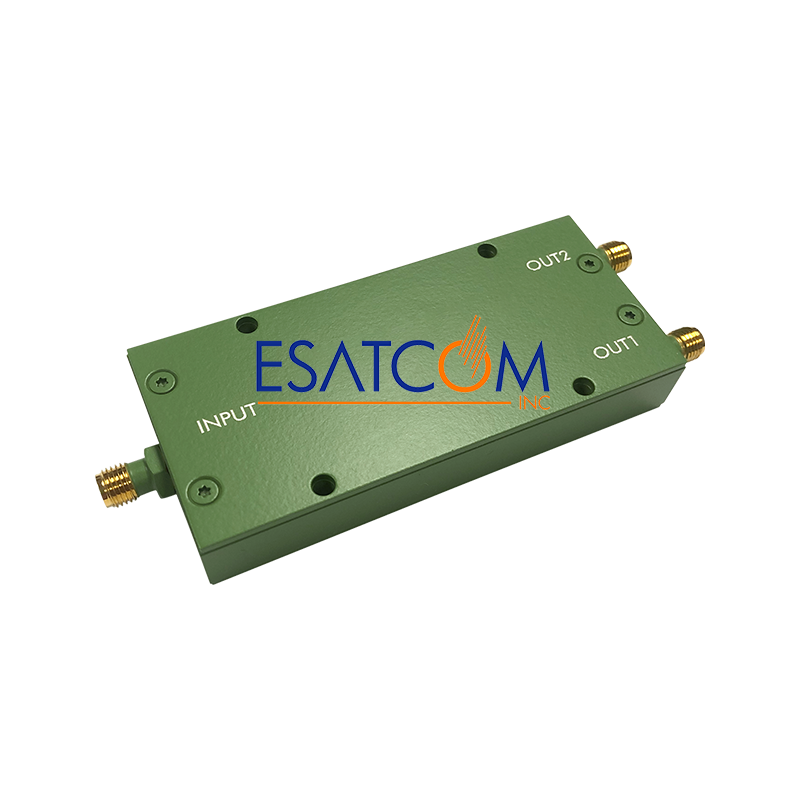

ESAT-2PD00506S 2-Way Power Divider 0.5–6 GHz, SMA-Female

The ESAT-2PD00506S is a compact 2-way power divider supporting frequencies from 500 MHz to 6 GHz. With excellent performance in return loss, isolation, and insertion loss, this RoHS-compliant unit is ideal for lab testing, RF systems, and 5G/6G deployment. Versatile mounting options and gold-plated SMA connectors make it robust and easy to integrate.

Frequency Range: 500 MHz to 6 GHz
Connector Type: SMA-Female
Insertion Loss (typ.): 0.7 dB above 3.01 dB split
Return Loss (typ.): 17.3 dB (Port S), 19.1 dB (Port 1–2)
Isolation (typ.): 23 dB (600–6000 MHz)
Amplitude Balance (typ.): 0.2 dB
Phase Balance (typ.): 2°
Input Power Handling: 50 W CW (500–2700 MHz), 30 W CW (2700–6000 MHz)
Construction: Aluminum body, gold-plated SMA connectors
Mounting Options: Through-hole or rack-mount (threaded)
Compliance: RoHS & REACH
Weight: Approx. 3 oz (85 g)
