ESAT-2PD0118S

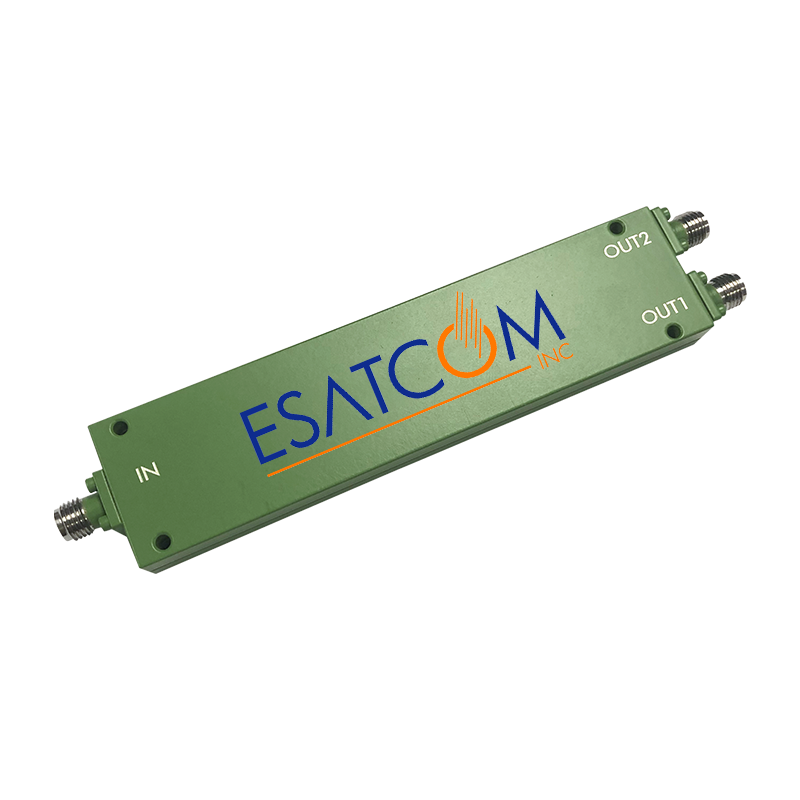

ESAT-2PD0118S 2-Way Power Divider 1–18 GHz, SMA-Female

The ESAT-2PD0118S is a wideband 2-way power divider supporting 1 to 18 GHz operation, ideal for L, C, X, and Ku-Band applications. Designed for military, commercial, and lab use, it offers excellent return loss, high isolation, and tight amplitude and phase balance. Compact and robust, this SMA-female splitter is RoHS and REACH compliant, and assembled and tested in the USA.

Frequency Range: 1–18 GHz
Insertion Loss: typ. 0.9 dB above 3 dB split
Isolation: typ. 18.7 dB
Return Loss: typ. 16.9 dB (Port S), 19.2 dB (Ports 1–2)
Amplitude Balance: typ. 0.2 dB
Phase Balance: typ. 0.7°
Power Handling: up to 30 W CW
Connectors: SMA-Female, stainless steel
Dimensions: 3.90 x 0.98 x 0.38 in
Weight: 2.6 oz (74 g)
Environment: Indoor use only, -55 to +85°C
Compliance: RoHS & REACH
Made in USA
