ESAT-2PD18265S

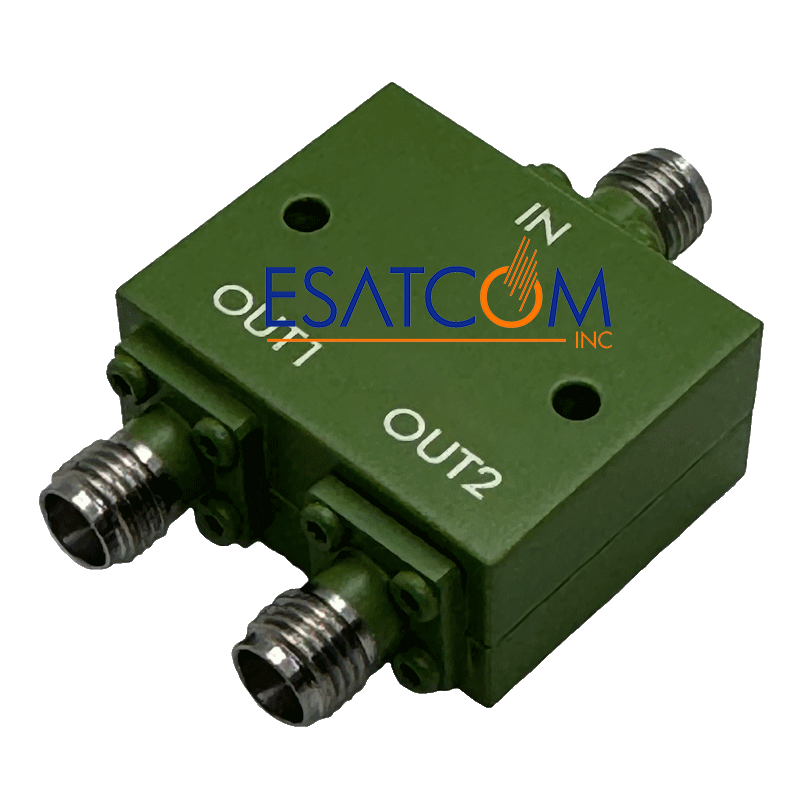

ESAT-2PD18265S 2-Way Power Divider 18–26.5 GHz, SMA-Female

The ESAT-2PD18265S from Esatcom Inc. is a precision-engineered 2-way SMA power divider operating from 18 to 26.5 GHz. Housed in a lightweight aluminum case with stainless steel SMA connectors, it delivers excellent performance across the full K-band with high isolation, low insertion loss, and tight amplitude/phase balance. Ideal for advanced RF systems and lab environments.

Frequency Range: 18–26.5 GHz
Insertion Loss: typ. 0.75 dB above 3 dB split
Isolation: typ. 21.5 dB
Return Loss: typ. 17.3 dB (Port S), 17.1 dB (Ports 1–2)
Amplitude Balance: typ. ±0.17 dB
Phase Balance: typ. ±2.4°
Power Handling: up to 10 W CW
Connectors: SMA-Female, stainless steel
Dimensions: Compact, lightweight (0.97 oz)
Environment: Indoor use only, -55 to +85°C
Compliance: RoHS & REACH
Made in USA
