ESAT-2PD02265S

2-Way Power Divider

2–26.5 GHz

SMA Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

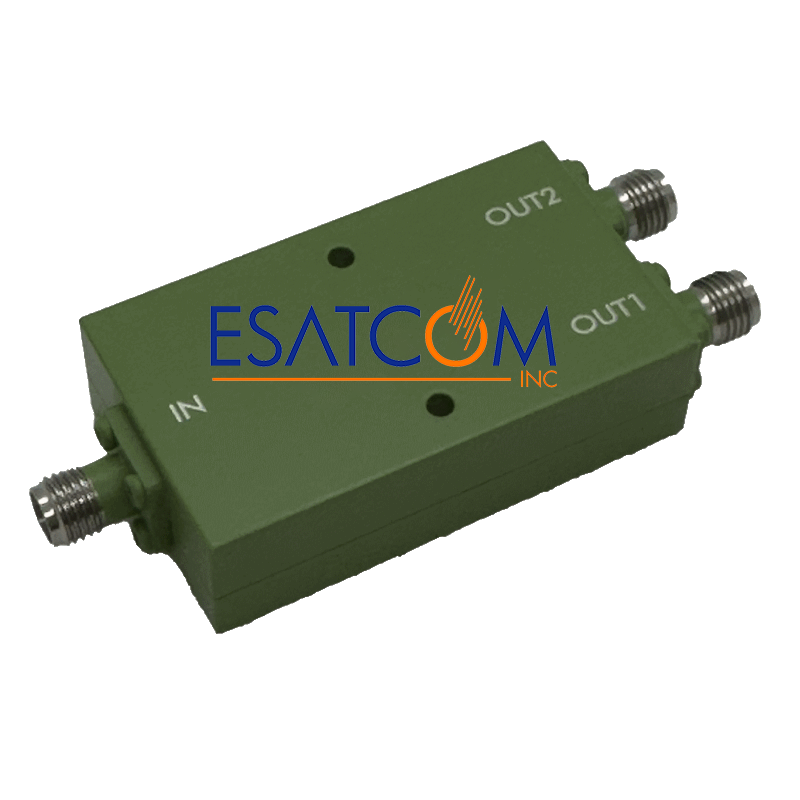

ESAT-2PD02265S 2-Way Power Divider 2–26.5 GHz, SMA-Female

The ESAT-2PD02265S is a high-performance 2-way wideband power divider designed to operate from 2 to 26.5 GHz. It delivers low insertion loss (typ. 0.6 dB above 3 dB split), excellent return loss (up to 19 dB), and high port-to-port isolation (typ. 20 dB). With SMA female connectors and compact aluminum housing, it’s ideal for broadband RF and microwave systems. Designed, assembled, and tested in the USA.

Frequency range: 2–26.5 GHz
Insertion loss: typ. 0.6 dB above 3 dB split
Isolation: typ. 20 dB
Return loss: typ. 19 dB (Port S), 20 dB (Ports 1–2)
Amplitude unbalance: typ. ±0.07 dB
Phase unbalance: typ. ±2.4°
Power handling: 10 W CW
Connectors: SMA-Female
Operating temp: –55 to +85 °C
Weight: 47.6 g
RoHS & REACH compliant
