ESAT-2PD06265S

2-Way Power Divider

6–26.5 GHz

SMA Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

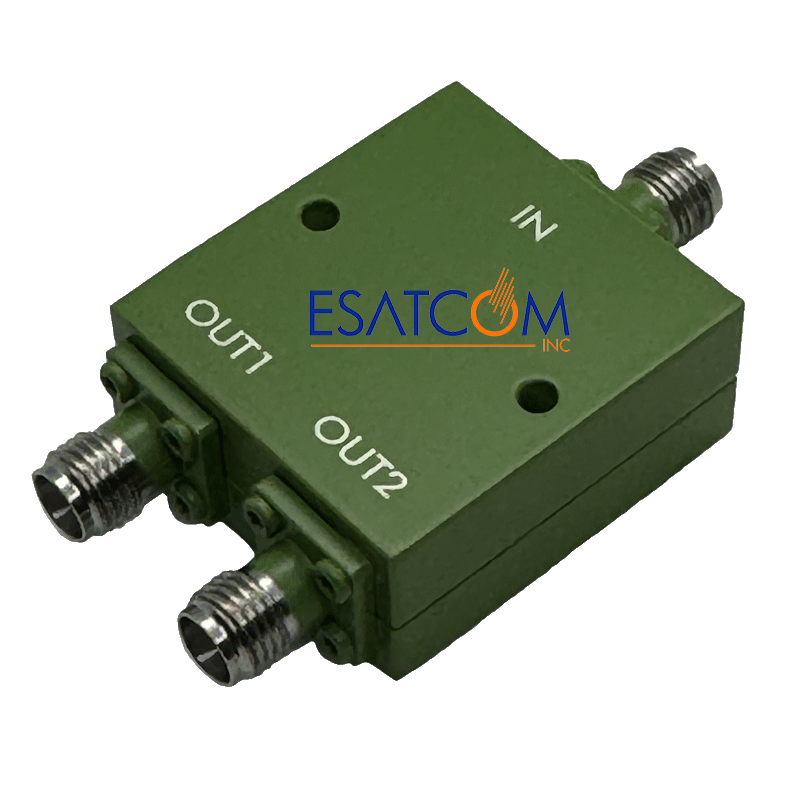

ESAT-2PD06265S 2-Way Power Divider 6–26.5 GHz, SMA-Female

The ESAT-2PD06265S is a broadband 2-way power divider operating from 6 to 26.5 GHz with exceptional RF performance in a compact SMA-F configuration. Offering typ. 0.57 dB insertion loss above the 3 dB split, 21 dB typical isolation, and excellent amplitude/phase balance, it supports up to 20 W input power. Engineered and tested in the USA, it’s ideal for demanding RF applications across multiple bands.

Frequency range: 6–26.5 GHz
Insertion loss: typ. 0.57 dB above 3 dB split
Isolation: typ. 21 dB
Return loss: typ. 17.2 dB (Port S), 18.4 dB (Ports 1–2)
Amplitude unbalance: typ. ±0.11 dB
Phase unbalance: typ. ±2.2°
Power handling: 20 W CW
Connectors: SMA-Female
Operating temp: –55 to +85 °C
Weight: 34.7 g
RoHS & REACH compliant
