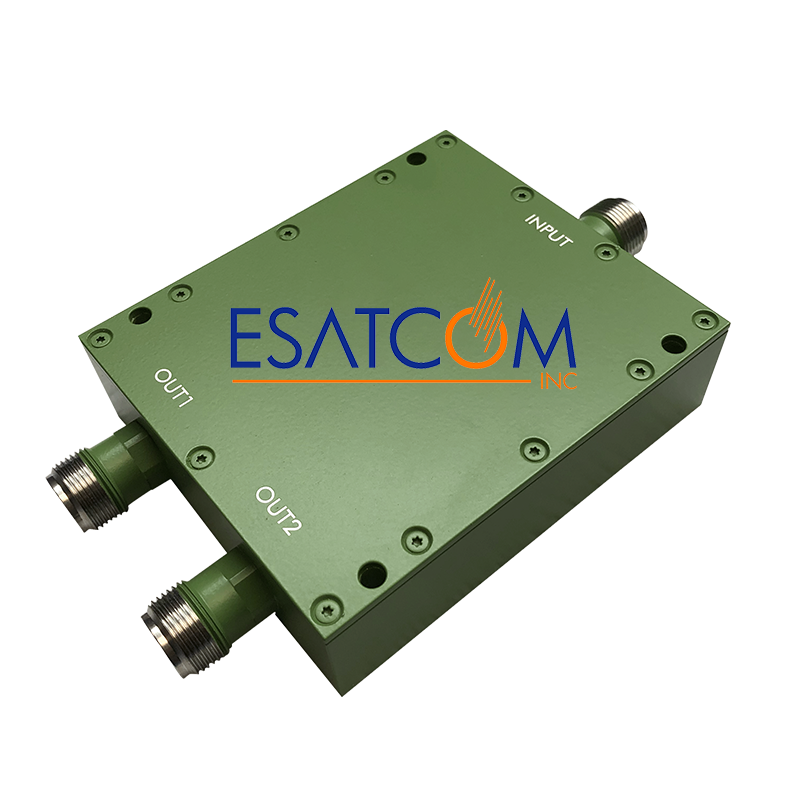

ESAT-2PD20530MN 2-Way Power Divider 20–530 MHz, N-Female

The ESAT-2PD20530MN is a high-performance 2-way RF power divider designed for broadband applications between 20 MHz and 530 MHz. Featuring robust N-Female connectors, this unit provides excellent return loss, high isolation, and minimal amplitude/phase imbalance across its entire frequency range. It is ideal for VHF/UHF, defense, test equipment, and broadband communication systems.

Frequency Range: 20–530 MHz (continuous)
Connector Type: N Female, 50 Ω impedance
Insertion Loss: typ. 0.4–1.0 dB (dependent on band)
Isolation: typ. 22–24 dB (min. 18 dB)
Return Loss: typ. 14–20 dB across ports
Amplitude Unbalance: typ. ±0.1–0.2 dB
Phase Unbalance: typ. ±1° to ±3°
Power Handling:
50 W CW max (splitter mode)
5 W/port max (combiner mode)
Temperature Range: –40 to +50 °C (operating), –55 to +80 °C (storage)
Enclosure: Aluminum with green paint finish
RoHS 3 & REACH compliant
Applications: Indoor use, lab and system integration, signal distribution
