ESAT-3PD18265S

3-Way Power Divider

18–26.5 GHz

SMA Female

Quantity

Request for Quotation

Security policy

Delivery policy

Return policy

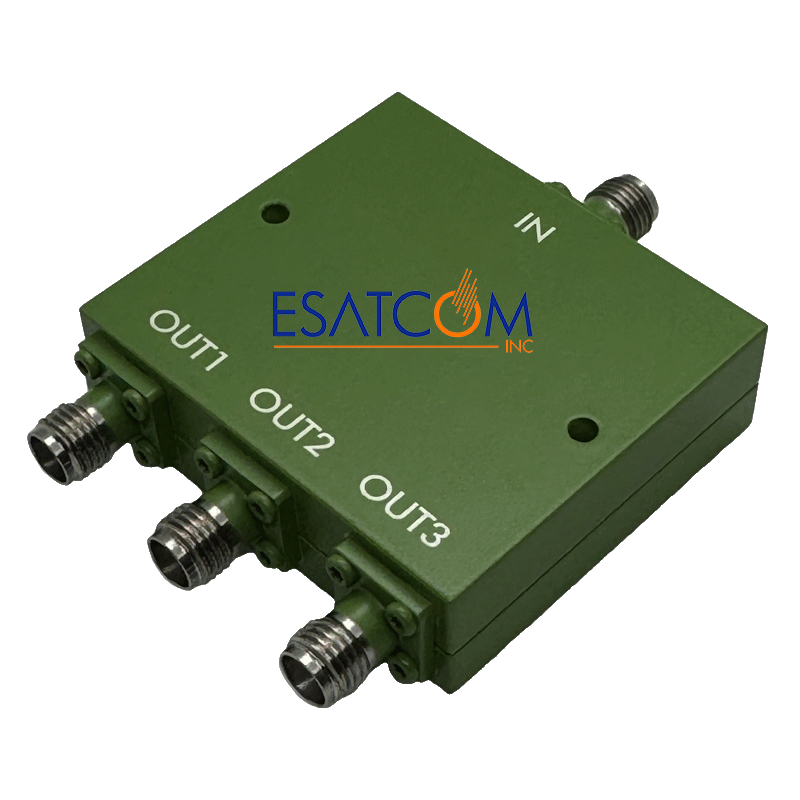

ESAT-3PD18265S 3-Way Power Divider 18–26.5 GHz, SMA-Female

The ESAT-3PD18265S by Esatcom Inc. is a high-frequency 3-way power divider operating from 18 to 26.5 GHz. Designed with precision SMA-Female connectors, it offers excellent isolation, balanced output performance, and tight phase matching. Ideal for Ka-band radar, EW, and test systems requiring consistent and reliable signal splitting in 50-ohm environments.

Frequency Range: 18–26.5 GHz
Connector Type: SMA Female, 50 Ω impedance
Return Loss: typ. 15.3 dB (input), 16.1 dB (output)
Insertion Loss: typ. 1.11 dB (above theoretical 4.8 dB split)
Isolation: typ. 23.9 dB (min. 16 dB)
Amplitude Unbalance: typ. ±0.57 dB
Phase Unbalance: typ. ±2.3°
Power Handling: 10 W CW max (input)
Temperature Range: –55 to +85 °C (operating)
Compact & Lightweight: 27.5 g (0.97 oz)
Construction: Aluminum enclosure with green finish
RoHS & REACH Compliant
Application: Ka-band, lab environments, high-frequency subsystems
