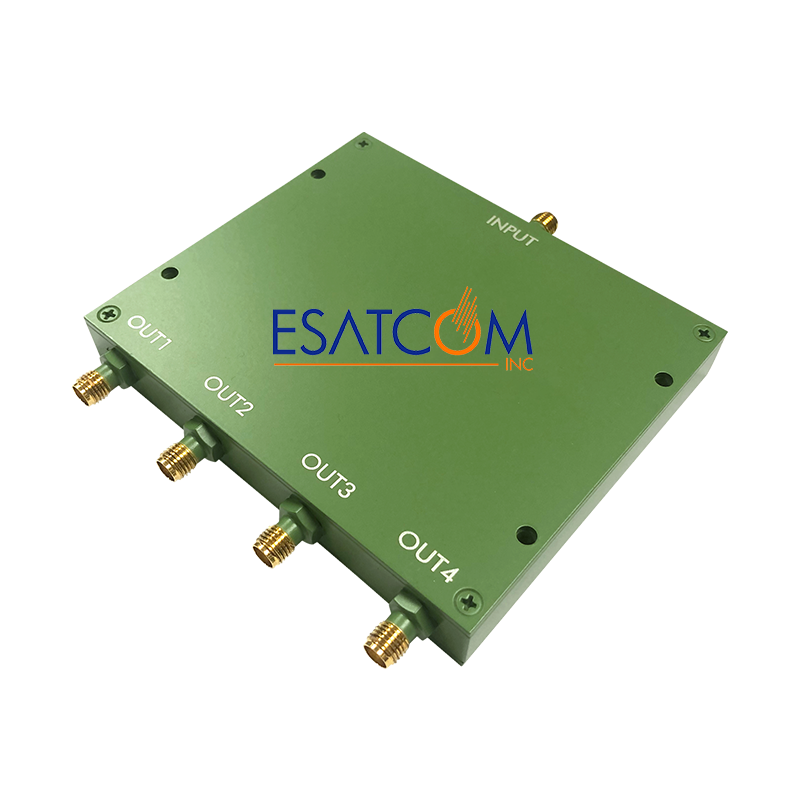

ESAT-4PD0472S 4-Way Power Divider 0.4–7.2 GHz, SMA-Female

The ESAT-4PD0472S is a broadband 4-way power divider operating from 400 MHz to 7.2 GHz, covering UHF, L, S, and most of the C band. Engineered for low insertion loss and high isolation, it is ideal for RF testing, wireless infrastructure, and signal distribution. The compact aluminum enclosure features gold-plated SMA connectors for excellent signal integrity and corrosion resistance.

Frequency Range: 0.4–7.2 GHz
Connector Type: SMA Female, 50 Ω impedance
Insertion Loss: typ. 1.4 dB (above 6.02 dB split)
Return Loss: typ. 19 dB (input), 24 dB (outputs)
Isolation: typ. 22 dB (min. 16 dB)
Amplitude Balance: typ. ±0.3 dB
Phase Balance: typ. ±3.5°
Input Power Handling: 30 W CW max
Temperature Range: –40 to +85 °C (operating)
Construction: Aluminum enclosure, gold-plated connectors
Size: 3.80 x 3.20 x 0.55 inches
RoHS Compliant
Application: RF test labs, Wi-Fi, telecom systems, and signal distribution
