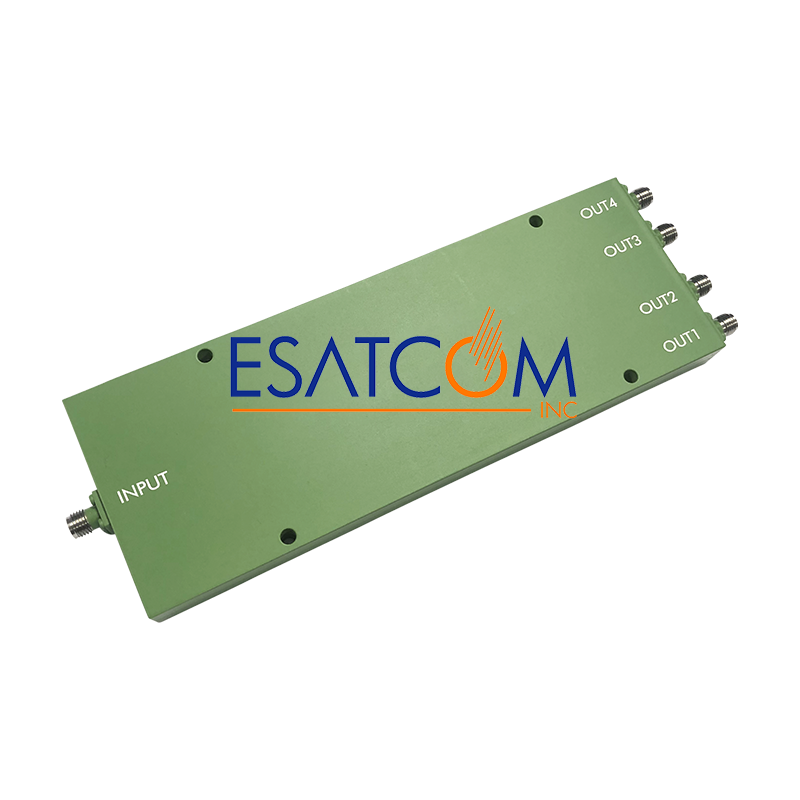

ESAT-4PD005265S 4-Way Power Divider, 0.5–26.5 GHz, SMA-Female

The ESAT-4PD005265S is a wideband 4-way SMA power divider covering 500 MHz to 26.5 GHz. It delivers excellent return loss, low insertion loss, and high isolation, making it ideal for broadband RF systems requiring stable amplitude and phase performance.

Frequency Range: 0.5 – 26.5 GHz
Impedance: 50 Ohm
Return Loss (Typ.): up to 21 dB
Insertion Loss (Typ.): 1.7 – 5.1 dB
Isolation (Typ.): 14 – 21 dB
Amplitude Unbalance: typ. ±0.23 to ±1.1 dB
Phase Unbalance: typ. ±3.2° to ±12°
Input Power (CW): 10 W max.
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Weight: 316 g
RoHS/REACH Compliant: Yes
Finish: Green Paint
