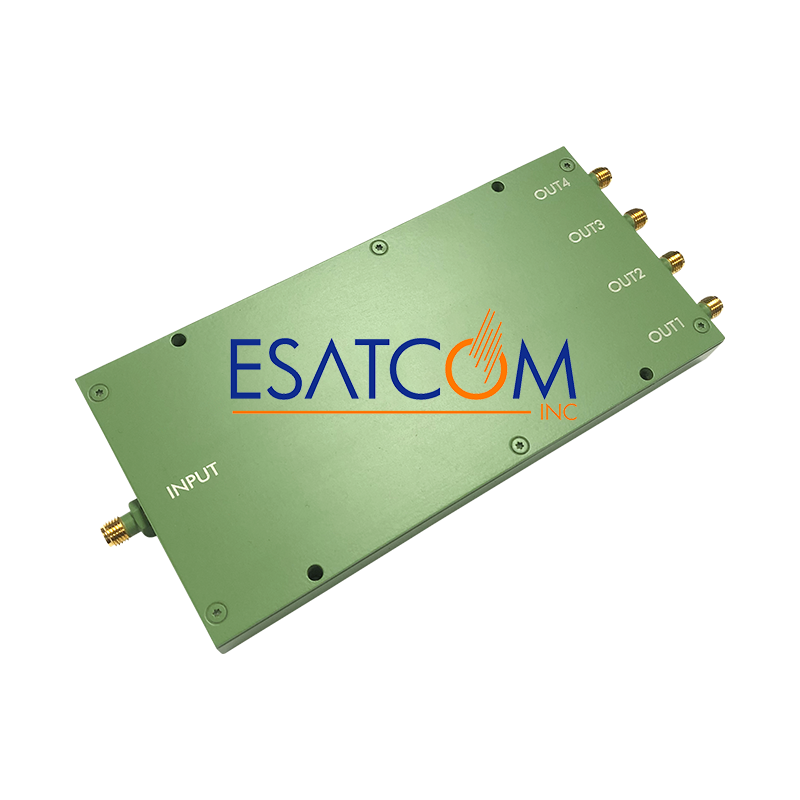

ESAT-4PD00506S 4-Way Power Divider, 0.5–6 GHz, SMA-Female

The ESAT-4PD00506S is a 4-way power divider covering 0.5 to 6 GHz, ideal for cellular, PCS, L, S, and lower C-band applications. It offers excellent return loss, low insertion loss, and high isolation, all in a rugged, compact aluminum enclosure.

Frequency Range: 0.5 – 6 GHz
Impedance: 50 Ohm
Return Loss: typ. 23 dB
Insertion Loss (above split): typ. 0.5–0.9 dB
Isolation: typ. 25 dB
Amplitude Balance: typ. ±0.2 dB
Phase Balance: typ. ±4°
Input Power (CW): max. 30 W
Connector Type: SMA Female
Operating Temp: –55°C to +85°C
Weight: approx. 170 g
Finish: Green Paint
RoHS/REACH Compliant: Yes
